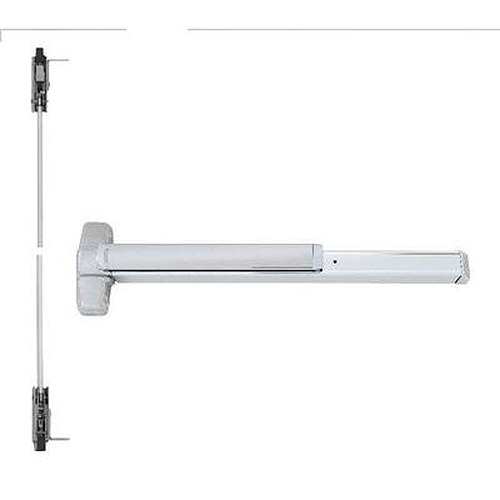

Von Duprin 9947EO

Concealed Vertical Rod Exit Device

Quick Product Details

  • Vertical Rod Exit Device
  • Exit-Only Function
  • Concealed Mounted
  • Heavy Duty
  • 3' - Fits Doors 2'4" to 3' Wide

or for better pricing

Price: $1,783.00 /each

SKU: 9947EO

Choose Options Below

This Von Duprin 9947EO is a concealed mount, exit only vertical rod exit device. It is non-handed and supplied standard with hex key dogging. This product is designed to fit doors that are 1-3/4" to 2-1/4" thick in heavy duty applications.

  • Stock Item
  • Order in the next 6 hours to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $1,783.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US28 (628) Anodized Aluminum US28 (628) Anodized Aluminum
313 Dark Bronze + $160.00 313 Dark Bronze +$160.00
US26D (626) Satin Chrome + $216.00 US26D (626) Satin Chrome +$216.00

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

Product at A Glance

  • For use on single and double doors
Style Vertical Rod Exit Device
Grade Heavy duty
Mounting Concealed mount
Trim Exit Only Function - no trim included
Handing Non-handed
Door Thickness 1-3/4" to 2-1/4"
Dogging Feature Hex key dogging standard
Strike - Top: 338 - unfinished
- Bottom: 385A - unfinished
Latch Bolt Deadlocking top and bottom bolt
Throw 5/8"
Top Rod Length Adjustable from 6'8" to 8'4"
Bottom Rod Length Adjustable from 35-5/8" to 49-5/8"
Door Undercut 1/4"
Device Length 3' - fits doors 2'4" to 3' wide
Center Case Dimensions 8" x 2-3/4" x 2-3/8"
Top and Bottom Latch Case 4-1/2" x 2-1/8" x 1-1/2"

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Accessories

Videos

How to Install a Concealed Vertical Rod Device thumbnail

How to Install a Concealed Vertical Rod Device

Concealed Vertical Rod Exit Device Adjustment thumbnail

Concealed Vertical Rod Exit Device Adjustment
