Von Duprin E7500 Electrified Exit Device Mortise Lock

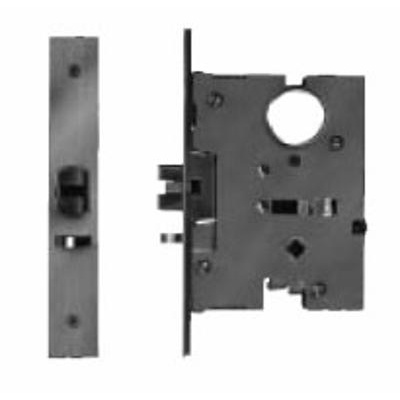

Electrified Exit Device Mortise Lock Photo

Von Duprin E7500 Electrified Exit Device Mortise Lock

SKU: E7500 Electrified mortise lock case for Von Duprin 5575, 8875, 9875 & 9975 Series mortise exit devices.

Overview
Tech Specs

Instructions & Templates

Electrified Exit Device Mortise Lock

Serial no. / SKU: E7500

Product Overview

Electrified mortise lock case for Von Duprin 5575, 8875, 9875 & 9975 Series mortise exit devices. Fully field reversible. Works with all standard mortise exit device trim. 32D finish supplied standard. Other finishes to order.

Electrified Exit Device Mortise Lock

Serial no. / SKU: E7500

Technical Specifications

Field reversible
24VDC - .3 AMP continuous duty solenoid
Tamper resistant
Corrosion resistant
Solenoid is internally mounted

1-1/4" mortise cylinder with a straight cam required to operate lock (not included)

The E7500 electrified mortise lock for use with 55, 88, 98 and 99 Series exit devices has all the versatility and advantages of the 7500 mortise lock plus the advantage of being electrically controllable by a remote switching device, an access control or automatic fire alarm system. The E-7500 controls the locking of the outside trim.

When unlocked, the door remains latched, preserving the fire rating of the door and making it particularly useful where codes permit locking, but require unlocking during a fire emergency.
