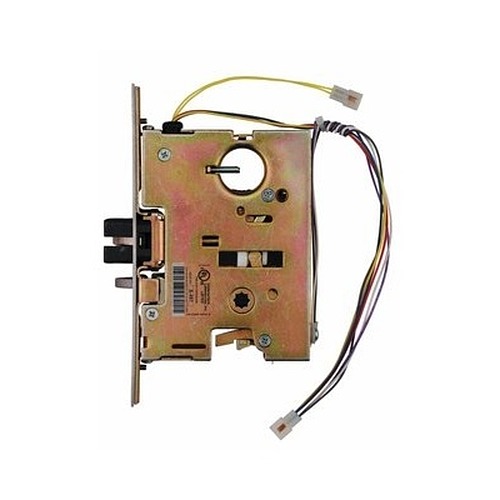

Von Duprin E7500

Electrified Exit Device Mortise Lock Body

SKU: E7500

Price: $688.00

Choose Options Below

Electrified mortise lock case for Von Duprin 5575, 8875, 9875 & 9975 Series mortise exit devices. See more product information below

We will not be able to accept a return for this item once electrical power has been applied to the item.

  • In Stock!
  • Order in the next 8 hours 44 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $688.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Fail Secure / Fail Safe:

Help Me Decide

  • Fail Secure - Standard for most applications. When lock is energized, outside trim unlocks door.
  • Fail Safe - Optional for continuously energized applications. When power is shut off, trim unlocks door.


  • Electrified mortise lock case for Von Duprin 5575, 8875, 9875 & 9975 Series mortise exit devices.
  • Fully field reversible. Works with all standard mortise exit device trim.
  • 32D finish supplied standard. Other finishes to order.
  • 24VDC - .3 AMP continuous duty solenoid

Available Options: Choose Options Above

  • Fail Secure / Fail Safe: info icon

    • Fail Secure (FSE) - Standard
    • Fail Safe (FS)

Tech Specs

  • Field reversible
  • 24VDC - .3 AMP continuous duty solenoid
  • Tamper resistant
  • Corrosion resistant
  • Solenoid is internally mounted
1-1/4" mortise cylinder with a straight cam required to operate lock (not included)
The E7500 electrified mortise lock for use with 55, 88, 98 and 99 Series exit devices has all the versatility and advantages of the 7500 mortise lock plus the advantage of being electrically controllable by a remote switching device, an access control or automatic fire alarm system. The E-7500 controls the locking of the outside trim.
When unlocked, the door remains latched, preserving the fire rating of the door and making it particularly useful where codes permit locking, but require unlocking during a fire emergency.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Electrified Exit Device Mortise Lock Body
