Von Duprin PS914

Power Supply

SKU: PS914

Price: $430.00

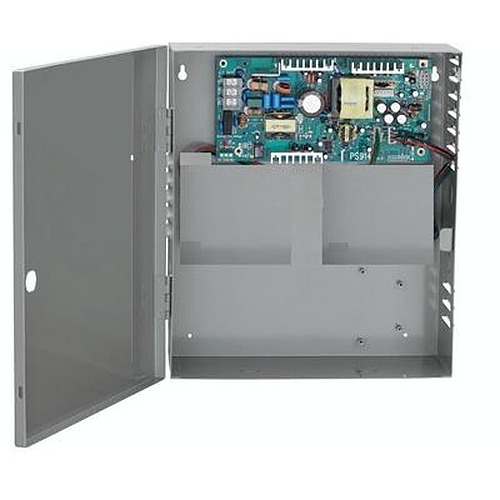

Von Duprin PS914 ia a regulated output power supply, field selectable for either 24VDC or 12VDC @ 4 amps. Standard power input 120/240 VAC. The PS914 is the standard power supply for Von Duprin Chexit delayed egress exit devices. The PS914 replaces the PS873 power supply See more product information below

Because field conditions vary and wiring applications are not certified, power supplies cannot be returned.

Have a question? Need help?
Call Us: 1-866-749-7661

  • In Stock!
  • FREE Shipping
  • ×
    Getting shipping methods...

Have a question about this product?


  • Designed to supply high in-rush current for powering electrified panic devices
  • Requires 900-2RS: 2 Relay EL panic device control board board to operate up to two EL devices.
  • The PS914 is the standard power supply specified for Von Duprin Chexit (CX) delayed egress exit devices and functionally replaces the discontinued PS873 power supply.
  • Enclosure 14"H x 12"W x 4"D, eight 1/2" x 3/4" knockouts
  • The PS914 will accept two distribution/options boards such as the 900-4R, 900-4RL, 900-FA, 900-BB, 900-BBK, etc.
  • Replaces the discontinued PS-873


Tech Specs

  • 4A @ 12/24 VDC output, field selectable with jumper
  • Low voltage DC, regulated and filtered
  • Two polarized connectors for distribution boards
  • AC status monitor - isolated SPDT contacts
  • AC input and DC output LED status indicators
