Yale 782

Special Order Power Supply-Controler for Yale Electric Latch Retraction "P" Exit Devices

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 782

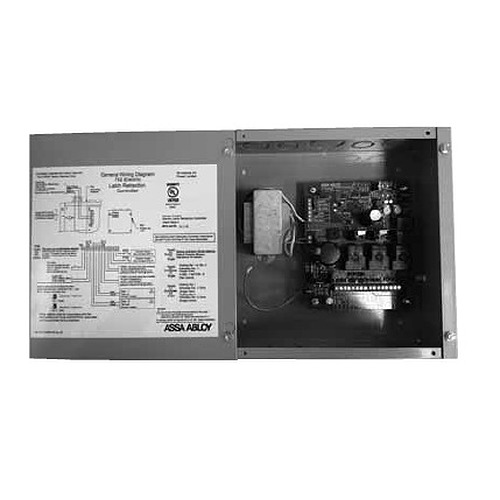

The Yale 782 Power Control is designed to control one or two electric latch retraction "P" exit devices.

Because field conditions vary and wiring applications are not certified, power supplies cannot be returned. Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order item with 4 week lead time
  • Designed to control one or two electric latch retraction “P” exit devices.
  • The 782 is required for use with the “P” latch retraction option. Using any other power supply with the “P” option voids the warranty of the device.
  • Equipped with two 20-second timers which can operate the exit devices together or independently.
  • Two control inputs. Accepts normally closed dry contacts for device activation from a key switch, push button, access control or fire alarm system.
  • Two normally open control outputs for automatic door operators.
  • Fire Alarm Interface input.
  • 120 VAC 60Hz 750mA input, 24VDC output.
