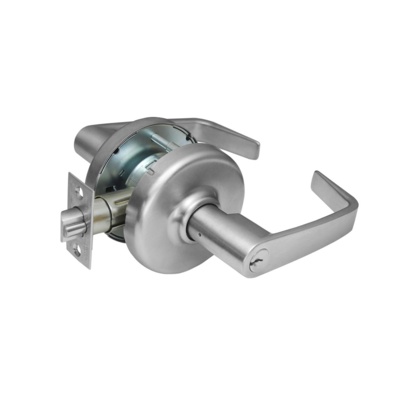

Corbin Russwin CL3551

Heavy Duty Commercial Entrance Lever

Quick Product Details

  • Lever Set
  • Entrance/Office Function
  • Heavy Duty
  • 2-3/4" Backset
Price: $485.00 /each

SKU: CL3551

Choose Options Below

This Corbin Russwin CL3551 is a heavy duty, commercial, Grade 1, entrance/office function lever set. Its deadlocking latch will resist attempts of lockpicking with a credit card and the independent lever springs will prevent lever sag. Select below from the various options to suit the needs of your application.

  • Stock Item
  • Order in the next 19 hours 38 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $485.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 - Satin Chrome 626 - Satin Chrome
625 - Polished Chrome + $9.00 625 - Polished Chrome +$9.00
612 - Satin Bronze + $9.00 612 - Satin Bronze +$9.00
613 - Oil Rubbed Bronze + $9.00 613 - Oil Rubbed Bronze +$9.00
605 - Polished Brass + $9.00 605 - Polished Brass +$9.00

Choose Keyway:

Need Help Deciding? QH chevron down
L4 Keyway-0 bitted (ready to be keyed)
60 keyway-0 bitted (ready to be keyed)
59A1 keyway-0 bitted (ready to be keyed)
D1 keyway-0 bitted (ready to be keyed)
No Cylinder Needed (LC) Subtract -($57.20)

Help Me Decide

?

Choose Lever Style:

NZD - Newport NZD - Newport
AZD - Armstrong AZD - Armstrong
PZD - Princeton PZD - Princeton

Overview


Quality and Safety:
  • Meets ANSI/BHMA A156.2 series 4000 Grade 1  requirements
  • 2-3/4" backset
  • UL listed for 3 hour fire rated doors, 4' x 10'.
  • Conforms to ADA requirements for  barrier-free accessibility
  • Meets A117.1 Accessibility Code
  • Deadlocking latch to prevent lock picking by credit card
  • 7 year limited warranty

Special Orders Available:
  • More unlisted finishes available
  • More unlisted lever styles available
  • More unlisted backset options available
Contact us directly to place your special orders.

Available Options: Choose Options Above

Product at A Glance

  • There are anti-rotational through-bolts at 6 and 12 o’clock positions
  • Independent return springs prevent lever sag
Style Lever set
Grade Heavy Duty
Function Entrance or Office Function:
- Pushing turn button on the inside lever locks the outside lever
- Rotating inside lever or the using a key will unlock the outside lever
- When the turn button is rotated, the outside lever is locked until the turn button is manually rotated back to its standard position
- Inside lever is always free
- ANSI F109
Door Thickness 1-3/4"
Handing Non-handed
Strike ANSI curved lip - 4-7/8" x 1-1/4" x 1-1/4" lip (standard)
Latch Stainless steel
Throw 1/2"
Latch Front 2-1/4" x 1-1/8"

More Info


The CL3551 heavy duty lever is ideally suitable for use in facilities such as nursing homes, rehabilitation centers, hotels, restaurants, apartment complexes and the like. This model operates with the entrance/office function which features a pushbutton on the inside lever and a keyed cylinder on the outside lever.
