Adams Rite 3090-01-121

Special Order Eforce-150 Digital Keyless Entry Lock for Narrow Stile Doors

Price: $514.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: 3090-01-121

Choose Options Below

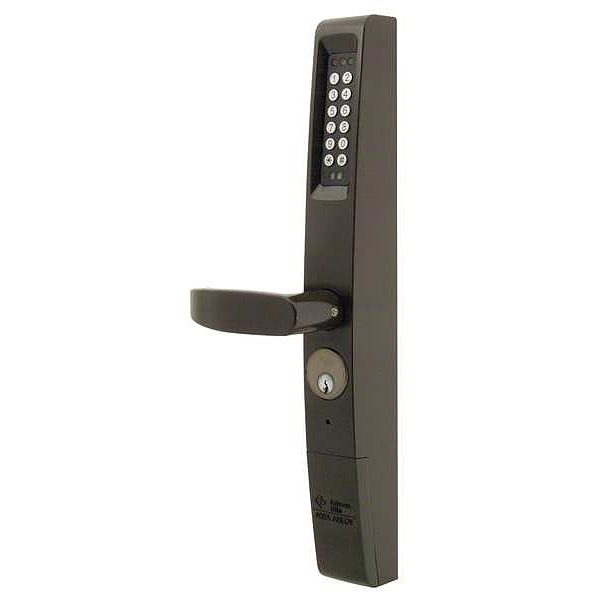

The Adams Rite eForce-150 (3090-01) is a battery operated keyless entry control for Adams Rite dead latches and exit devices that are compatible with aluminum stile, steel and wood door applications.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $514.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder:

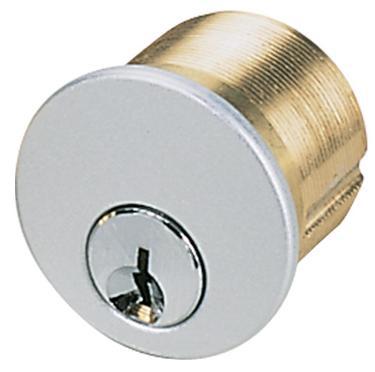

1 1" Mortise Cylinder-Schlage SC1 Keyway (Supplied in 613 Finish) +$15.00
No Cylinder Needed

Overview

Special order item with 6 week lead time
  • finish-painted dark bronze-121
  • Mounting hardware for metal door applications from 1-3/4" to 2-1/4" thick
  • The eForce-150 retrofits to Adams Rite 4500, 4900, Deadlatches and 8000 Series Exit Devices in 31/32" backsets and greater. All Yale 7200 Series, all Corbin Russwin ED4000 Series, and Sargent 8500 Rim exit devices.
  • Accommodates up to 150 users, including master, supervisor and emergency users plus two one-time codes.
  • The eForce-150 can operate in three modes: Standard, Passage and Lockout.
  • All programming is accomplished via the keypad
  • Surface mounted with concealed fasteners
  • Powered by 4 AA alkaline batteries
  • Key override requires a 1" mortise cylinder, not included

Available Options: Choose Options Above

  • Cylinder:

    • 1" Mortise Cylinder-Schlage SC1 Keyway (Supplied in 613 Finish)
    • No Cylinder Needed

More Info

  • Field selectable handing
  • Free-wheeling lever with clutch to prevent vandalism
  • Full outdoor rating – temperature range from -31°F to 151°F
  • Measures 1-3/4" wide x 15-3/8" high
  •  The eForce-150 can operate in three modes: Standard, Passage and Lockout.
  • In the standard mode of operation, a programmed 2 to 7 digit code followed by star (*) key,
    allows for one entry. Hold open time is adjustable from 1 to 9 seconds.
