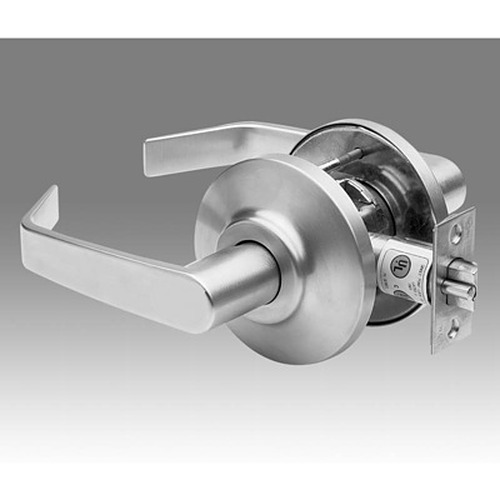

Best 9K30NDS3

Heavy Duty Duty Passage Lever

Quick Product Details

  • Lever Set
  • Heavy Duty
  • Passage Function
Price: $398.00 /each

SKU: 9K30NDS3

Choose Options Below

This Best 9K30NDS3 is a passage function, heavy duty lever which allows for immediate egress from the inside and the outside at all times. It is available with three different, pleasing finishes and a variety of lever styles.

  • Stock Item
  • Order in the next 19 hours 38 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $398.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin Chrome 626 Satin Chrome
613 Oil Rubbed Bronze + $19.00 613 Oil Rubbed Bronze +$19.00

Choose Lever Style:

14 Curved Return 14 Curved Return
15 Contour Angle Return 15 Contour Angle Return
16 Curved 16 Curved

Overview


Quality and safety:
  • ADA compliant
  • UL Listed for 3-hour A label single swinging doors (4' x 8') fire doors
  • Listed ANSI/BHMA  A156.2 Series 4000, Grade 1

Available Options: Choose Options Above

Product at A Glance

  • In addition to standard door preparation (ANSI A115.2 for 1 ¾” doors) through-bolts require two 5/16” diameter holes located at 12 o’clock and 6 o’clock positions
  • Through-bolt mounting studs increase torque resistance
Style Lever
Grade Heavy duty
Function Passage Function:
- Both levers are always unlocked
Backset 2-3/4"
Handing Non-handed
Rose 3-1/2" diameter
Door Thickness 1-3/4"
Latch - deadlocking latch
- 1/2" throw
- front: 2-1/4"x 1-1/8"
- (ANSI A115.2 for 1 3/4" doors)
Strike S3 ANSI strike 4-7/8" x 1-1/4" with curved lip

More Info


This 9K series lever is known for its strength and smooth operation. The passage function lever consists of two levers without cylinders that are always free and allow for immediate entrance and exit at all times. It is available in three lever styles with a rose that will serve to enhance the aesthetics in any application
