Corbin Russwin ML2057-YZN-626-LC

Special Order Complete Knob and Escutcheon lock with Storeroom Function-Less Cylinder

Price: $857.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: ML2057-YZN-626-LC

Choose Options Below

The Corbin Russwin ML2057-YZN-626- is a complete mortise lock with the YZ Solid Cast knob and N style escutcheon.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $857.00

Choose Finish:

626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Overview

Non-Stock Special Order with 4-5 week lead time

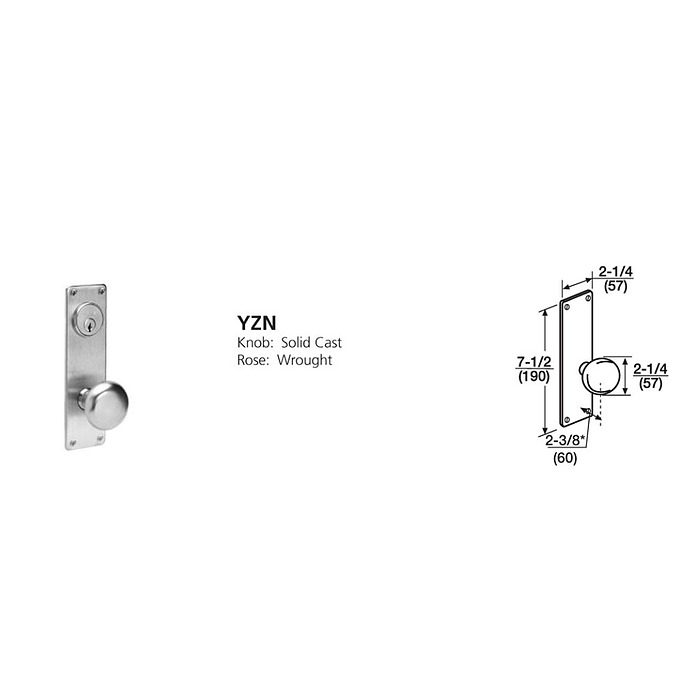

  • YZ Solid Cast Knob with "N" style Escutcheon Plate and ML2057 mortise lock.
  • Complete set includes lock body, full trim and related hardware for installation.
  • Satin chrome finish-626.
  • Supplied "LC" less cylinder. Mortise cylinder required for operation

Available Options: Choose Options Above

Product at A Glance

Function:

  • Latchbolt by grip inside or by key outside.
  • Outside grip always rigid.
  • Auxiliary latch deadlocks latchbolt.
  • Inside grip always free.

Specifications:
  • ANSI/BHMA Code: A156.13
  • ANSI/BHMA Series: Series 1000
  • Backset Depth (Standard): 2 3/4"
  • Cylinder Format: Conventional, Large Format, Small Format
  • Cylinder Pins: 6 pin, 7 pin
  • Door Thickness (Standard): 1 3/4"
  • Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
  • Handing: Field Reversible
  • Latchbolt Throw: 3/4"
  • Maximum Backset: 2 3/4"
  • Maximum Door Thickness: 4"
  • Minimum Backset: 2 3/8"
  • Minimum Door Thickness: 1 3/8"
  • Supplied less Cylinder
  • Strike Type (Standard): ANSI Straight Lip
  • UL Listed: Yes
  • ULC Listed: Yes
  • Warranty: 10-year limited warranty

More Info


Certifications:
  • ASTM E330 Certified
  • Environmental Product Declaration (EPD)
  • CAL FIRE, 3775-1305:0130
  • UL listed and UL10c compliant
  • Buy American Act
  • UL-cUL Listed for use on fire doors having a rating up to and including 3-hours
  • Florida Building Code Windstorm Certified
  • ANSI/BHMA A156.13, Series 1000, Operational and Security Grade 1
  • grip always free.
