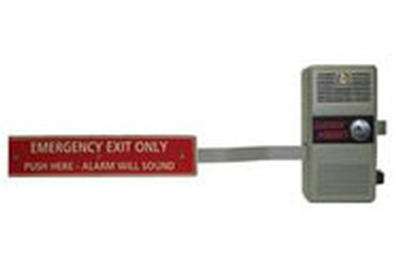

Detex ECL-600 Fire Rated Alarmed Exit Device

Detex ECL-600 Fire Rated Alarmed Exit Device

SKU: ECL-600 Detex ECL-600 Fire rated alarmed exit device. Code-compliant, battery alarmed, fire exit hardware with deadbolt and dead locking latchbolt. Deadbolt and latchbolt deters unauthorized access from the outside while allowing emergency egress from the inside for secondary fire exits.

Overview
Tech Specs
Related Items

Instructions & Templates

Fire Rated Alarmed Exit Device

Serial no. / SKU: ECL-600

Product Overview

Supplied with: cover lock w/2 keys, ECL-437 & ECL-439 Keepers
Accepts standard and interchangeable core rim cylinders.(Cylinder not included)
The deadbolt and deadlocking latchbolt retract simultaneously when the paddle bar is pushed
1" throw bolt and 3/4" deadlocking latchbolt
Use of control key permits unlocking the door without sounding the alarm
Locking the deadbolt mechanism always arms the alarm system
Installs on 32" to 48" wide doors
Battery- 9V Standard
Non-handed lock and bar which require no cutting
Grey finish

Fire Rated Alarmed Exit Device

Serial no. / SKU: ECL-600

Technical Specifications

Deadbolt and latchbolt deters unauthorized access from the outside
while allowing emergency egress from the inside
Rugged housing with key lock, saw-resistant bolt and corrosion-resistant
alloy lock body resist defeat from the inside
When armed, pressing the exit bar sounds an alarm of approximately 100 decibels
Inside and outside key control capabilities allow authorized alarm bypass
Relatching for additional security
Resetting the alarm can only be accomplished with a control key that also throws the deadbolt
Die-cast aluminum alloy housing with Gray finish
Remote Signal- Dry Contact
Cylinder Spacer is required for 6 or 7-pin cylinder on inside key control (ECL-1595)
Lock Case dimensions: 10-3/8" high x 5-3/4 " wide x 3-3/4" deep
Push plate and bar dimensions: 2-1/2 " high x 24-1/8" wide
