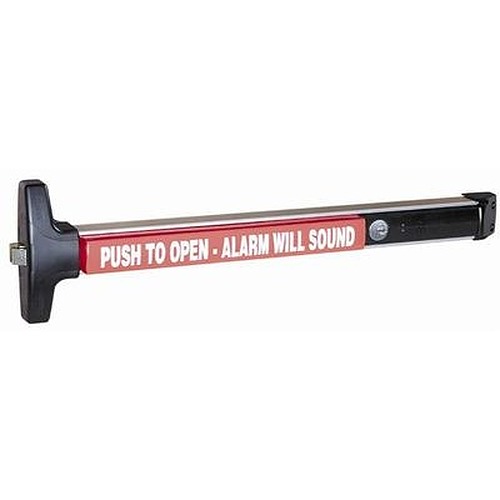

Detex V40-EB

Alarmed Rim Exit Device


Price: $286.00

Choose Options Below

Detex V40-EB Alarmed rim exit device. Designed for primary and secondary exits that require an alarmed panic device. Alarm will sound when someone attempts to exit,alerting management to the unauthorized exit. Fits standard 1-3/4" - 2-1/4" thick wood, hollow metal, fiberglass or aluminum doors. See more product information below

  • In Stock!
  • Order in the next 20 hours 21 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $286.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Choose Cylinder 1-1/8" Mortise:

Help Me Decide

  • 1-1/8" Mortise cylinder required with standard Yale cam to arm/disarm alarm
  • Mortise cylinder includes 2 keys.



Choose Select Rail Size:


  • Designed for primary and secondary exits that require an alarmed panic device.
  • Requires 1-1/8" Mortise Cylinder with a standard Yale Cam to Arm / Disarm & Dog / Un-dog (Not included).
  • Fits standard 1-3/4" - 2-1/4" thick doors.
  • Door Types - Wood, Hollow Metal, Fiberglass or Aluminum.
  • Powered by standard 9-volt battery.
  • Cylinder dogging.
  • UL Listed Panic Hardware.
  • Meets ADA requirements.
  • ANSI/BHMA certified A156.3 grade 1.
  • UL10C for positive pressure.
  • Meets NFPA 80 & 101 for Life Safety.

Available Options: Choose Options Above

  • Finish:

  • Cylinder 1-1/8" Mortise: info icon

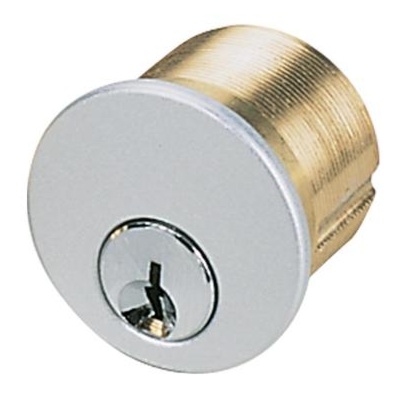

    • 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway
    • No Mortise Cylinder needed
  • Select Rail Size:

    • 36"
    • 48"

Tech Specs

  • Stainless-steel, dead-latching bolt with a 3/4" throw.
  • Tamper-resistant housing protects electronics, battery and internal hardware.
  • Accommodates 5, 6 and 7 pin standard and interchangeable core mortise cylinders with a standard Yale Cam.
  • Covers a 161 door prep.
  • Non-handed.
  • Field sizeable.
  • Visual and audible low-battery alert.
  • Visual and audible arming indicators.
  • NS Narrow stile door option - Fits 2" narrow stile doors with
    Narrow Stile Door Kit (#NSK sold separately).
  • Angled end cap to deflect damage.
  • Tamper-resistant security switching electronically monitors latch bolt.
  • Adjustable 2 min. re-arming feature for auto re-arm.
  • Armed/Disarmed status indicator is field selectable.
  • Delayed arming feature for arming after door closed.
  • Exterior of anodized aluminum and damage and corrosion resistant ABS.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Alarmed Rim Exit Device

People who bought this product also bought

Detex V40EB Installation thumbnail

Detex V40EB Installation

Detex V40EB Battery Change thumbnail

Detex V40EB Battery Change

Scroll for More Product Information
