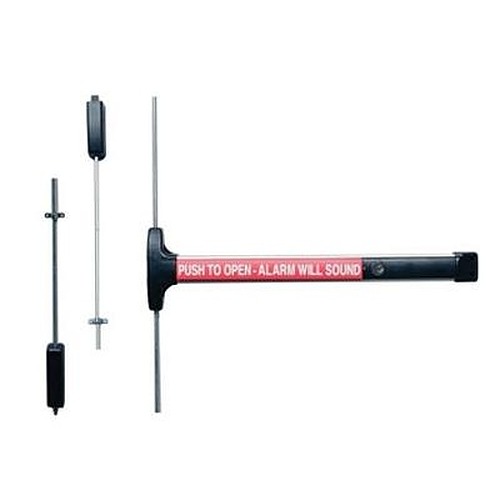

Detex V50-EB-48

Special Order Alarmed Surface Vertical Rod Exit Device

SKU: V50-EB-48

Price: $692.00

Special Order non-stock item Requires 4 week lead time

Choose Options Below

The Detex V50EB Surface Vertical Rod device is designed for primary and secondary exits that require an alarmed surface vertical rod exit device. The 100dB alarm will sound when someone attempts to exit, alerting management to the unauthorized exit. See more product information below

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $692.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder 1-1/8" Mortise:

Help Me Decide

  • 1-1/8" Mortise cylinder required with standard Yale cam to arm/disarm alarm
  • Mortise cylinder includes 2 keys.




  • Alarmed 2 point surface vertical rod exit device powered by standard 9-volt battery
  • This device locks at the top and bottom and is suitable for a single 4'X 7' door in a pair.
  • 100 decibel alarm
  • 1-1/8" Mortise cylinder with a standard Yale Cam to Arm / Disarm & Dog / Un-dog , not included
  • Fits standard 1-3/4" - 2-1/4" thick wood, hollow metal, fiberglass or aluminum doors.
  • Door Stile - Fits 2-1/2" stile doors, Fits 2" narrow stile doors with NSK door kit
  • Devices are shipped RHR,field reversible.

Available Options: Choose Options Above

  • Cylinder 1-1/8" Mortise: info icon

    • 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway
    • No Mortise Cylinder needed

Tech Specs

  • Stainless steel, 3/4" deadlocking Pullman-type top latch bolt
  • Bottom drop bolt, 5/8" dia. x 5-5/8" long secures into strike plate
  • Single mortise cylinder (sold separate) provides arming and dogging
  • Field selectable key rearm or 2 min. auto rearm
  • Visual and audible arming indicators
  • Armed and disarmed field selectable status indicator
  • Delayed arming allows arming after door closes
  • ANSI 156.3 - 2001 Grade 1
  • UL Listed Panic Hardware



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Special Order Alarmed Surface Vertical Rod Exit Device
