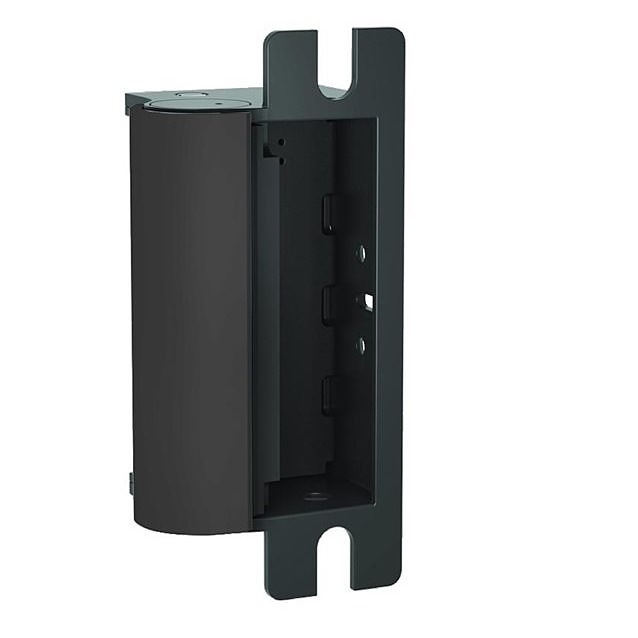

HES 1006-BLK

Dual Voltage Electric Strike Suitable For Outdoor Use

Quick Product Details

  • Dual Voltage Electric Strike
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • Electric Strike Black Body
  • Fail Secure
Price: $428.00 /each

SKU: 1006-BLK

Choose Options Below

This HES 1006 is an electric strike that provides remote release of a locked door. It is the strongest and most versatile electric strike available. With 24 faceplate options, the HES 1006 can accommodate virtually every type of lockset on the market and is suitable for outdoor use. (The 1006 replaces the obsolete 1003 Series)

  • Stock Item
  • Order in the next 3 hours 56 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $428.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Face Plate:

Need Help Deciding? QH chevron down
E Option 630 finish + $39.00 E Option 630 finish +$39.00
H Option 630 finish + $39.00 H Option 630 finish +$39.00
HD Option 630 finish + $39.00 Limited Availability HD Option 630 finish +$39.00
HM Option 630 finish + $39.00 HM Option 630 finish +$39.00
HT Option 630 finish + $39.00 HT Option 630 finish +$39.00
H-2 Option 630 finish + $61.00 H-2 Option 630 finish +$61.00
HTD Option 630 finish + $39.00 HTD Option 630 finish +$39.00
K Option 630 finish + $25.00 K Option 630 finish +$25.00
KD Option Black Finish + $42.00 KD Option Black Finish +$42.00
J Option Black Finish + $42.00 J Option Black Finish +$42.00
J-2 Option 630 finish + $50.00 J-2 Option 630 finish +$50.00
KM Option Black Finish + $42.00 KM Option Black Finish +$42.00
K-2 Option 630 finish + $50.00 K-2 Option 630 finish +$50.00
N Option 630 finish + $39.00 N Option 630 finish +$39.00
ND Option 630 finish + $39.00 ND Option 630 finish +$39.00
NM Option 630 finish + $39.00 NM Option 630 finish +$39.00
N -2 Option 630 finish + $61.00 N -2 Option 630 finish +$61.00
R Option 630 finish + $39.00 R Option 630 finish +$39.00
Z Option 630 finish + $26.00 Z Option 630 finish +$26.00
No Face Plate

Help Me Decide

  • KM face plate,for use with: Mortise locksets up to 3/4" [19mm] throw latchbolt.
  • J face plate,for use with: Cylindrical locksets up to 3/4" [19mm] throw and all locksets with center-lined bolts.



Overview

Quality:
  • Black finish.
  • UL 10C fire-rated, 3 hour single door (fail secure only).
  • UL 10C fire-rated, 1-1/2 hour double door (fail secure only).
  • CAN4-S104(ULC-S104) fire door conformant.
  • ANSI A250.13-2003 windstorm listed.
  • UL 1034 burglary-resistant listed and suitable for outdoor use.
  • UL 294 listed.
  • ANSI/BHMA A156.31, Grade 1.
  • NFPA-252 fire door conformant.
  • ASTM-E152 fire door conformant.
Florida Building Code approved
  • 5 year limited warranty​

Special Orders Available:
  • More unlisted finishes available.
Contact us directly to place your special orders.

Available Options: Choose Options Above

  • Face Plate: info icon

    • E Option 630 finish
    • H Option 630 finish
    • HD Option 630 finish
    • HM Option 630 finish
    • HT Option 630 finish
    • H-2 Option 630 finish
    • HTD Option 630 finish
    • K Option 630 finish
    • KD Option Black Finish
    • J Option Black Finish
    • J-2 Option 630 finish
    • KM Option Black Finish
    • K-2 Option 630 finish
    • N Option 630 finish
    • ND Option 630 finish
    • NM Option 630 finish
    • N -2 Option 630 finish
    • R Option 630 finish
    • Z Option 630 finish
    • No Face Plate

Product at A Glance

  • Features a dual interlocking plunger design and heavy-duty, all stainless steel construction.
  • Plug-in connector.
  • Internally mounted solenoid.
  • Tamper resistant.
  • Full keeper shims to allow for  horizontal adjustment.
  • Trim enhancer.
Fail Secure Fail secure means when no power is applied the door is locked
Style Dual Voltage Electric Strike Fail Secure
Application Steel, aluminum and wood frames
Handing Non-handed
Voltage Dual voltage 12 or 24VDC continuous duty
Electricity Continuous duty - .45 Amps @ 12 VDC, .25 Amps @ 24VDC
Static Strength 3070 lbs. (fail secure)
Dynamic Strength 350 lbs. (fail secure)

More Info


Hes 1006 electric strike is the most versatile strike in today’s market. It is available with twenty-seven faceplate options which makes it usable in nearly all applications with virtually all locksets and conditions. It is the ideal choice to provide for reliable remote latching of a door wherever necessary. Select the appropriate faceplate and your satisfaction is guaranteed.
