HES 1006CLB

Electric Strike Kit for Latchbolt Locks

SKU: 1006CLB

Price: $339.00

The HES 1006CLB is the electric strike for every latchbolt lock. It accommodates every cylindrical and mortise lockset for ANSI 4-7/8" strike plates with up to a 3/4" latchbolt. Included in the box is a 1006 strike body, 3 faceplates J, KD and KM and all the necessary mounting hardware you will need. See more product information below

Have a question? Need help?
Call Us: 1-866-749-7661

  • In Stock!
  • Order in the next 31 hours 42 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

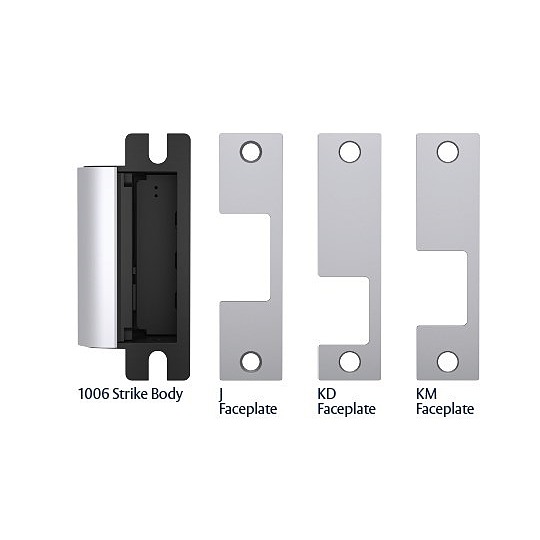

  • Included in the box is a 1006 strike body, 3 faceplates J, KD and KM and all the necessary mounting hardware you will need.
  • J  faceplate (4-7/8" x 1-1/4") For use with cylindrical locksets  up to 3/4" throw and all locksets with center-lined bolts.
  • KD faceplate (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned above the latchbolt. Compatible Locksets: Jackson, Sargent (7700 & 8100), Schlage, Yale (8700).
  • KM faceplate (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned below the latchbolt. Compatible Locksets: Accurate, Arrow, Best*, Corbin/Russwin, Falcon (1992 M Series), Sargent (7800, 8200 & 9200 series), Yale (8800) *For Best 45H & 47H deadlatch below, and Best 34H - 37H deadlatch above.
  • Features a dual interlocking plunger design and heavy-duty, all stainless steel construction.
  • UL rated- suitable for outdoor use.
  • Dual voltage 12 or 24VDC continuous duty
  • Frame application - Steel, Aluminum, Wood.
  • UL 10C, 3 hour fire-rated (fail secure only)
  • Electrical (continuous duty) - .45 Amps @ 12VDC -.25 Amps @ 24VDC
  • Fail secure (standard).
  • 630 finish
  • Plug-in connector
  • Non-handed
  • Internally mounted solenoid
  • ANSI A250.13-2003 windstorm listed
  • UL 1034, burglary-resistant listed
  • ANSI/BHMA 156.31, Grade 1
  • Static strength 3070 lbs. Dynamic strength 350 ft-lbs.
  • Tamper resistant
  • Full keeper shims
  • Trim enhancer
