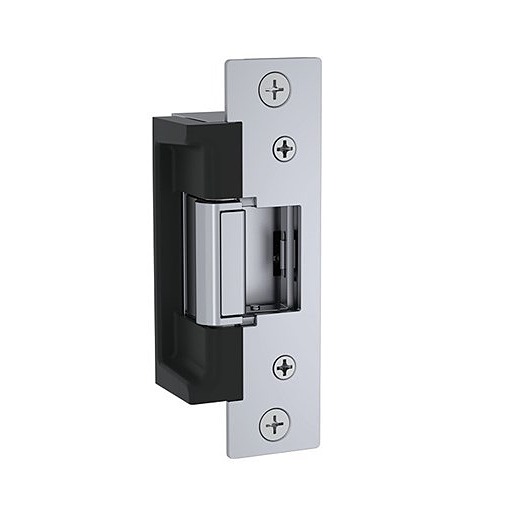

HES 7000

Electric Strike with Pre load

SKU: 7000

Price: $142.00

Choose Options Below

Electric strikes provide remote release of a locked door. They allow the door to be opened without retracting the latchbolt. The heavy duty HES 7000 electric strike with a modular design to accommodate both cylindrical and rim exit locksets, will accommodate various types of latchbolts from 5/8" to 3/4" throw. The HES 7000 is ideal for high usage applications. See more product information below

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $142.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Face Plate:

Need Help Deciding?

Help Me Decide



  • 791 Option-For use with cylindrical locksets up to 5/8” throw. Operation- After releasing latchbolt the keeper returns to the locked position.  For use with 7000 strikes manufactured after December 2010
  • 792 Option-- For use with cylindrical locksets up to 5/8” throw. Operation- After releasing latchbolt the keeper returns to the locked position. For use with 7000 strikes manufactured after December 2010
  • 783S Option-For use with rim exit devices in metal jambs with up to a 3/4” pullman latch. Compatible Devices- American Device, Arrow, Doromatic, Monarch, Precision, Sargent, Von Duprin, Yale
  • 786S Option-For use with rim exit devices in aluminum jambs and surface mounted
    vertical rod exit devices with up to a 3/4” pullman latch. Compatible Devices- American Device, Arrow, Doromatic, Jackson, Monarch, Precision, Sargent, Von Duprin, Yale
  • 789S Option-For use with Rim exit devices in aluminum jambs with up to a 3/4” pullman latch. Includes keeper pocket adapter. Compatible Devices- American Device, Arrow, Doromatic, Jackson, Monarch, Precision, Sargent, Von Duprin, Yale

Choose Finish:

Choose Voltage:

Help Me Decide

Voltage-continuous duty .45 Amp @ 12VDC- .25 Amp @ 24VDC

Overview

  • Modular design to accommodate both cylindrical and rim exit locksets, and will accommodate various types of latchbolts from 5/8" to 3/4" throw.
  • Body only does not include faceplate or lip extension shown in illustration above.
  • The pre-load release function allows the electric strike to operate smoothly throughout the year under varying loads on the door caused by air conditioning pressure, changes in the weather, warped doors or doors with weather stripping that often bind standard electric strikes.
  • Accommodates up to 30 lbs. pre-load (fail secure only)
  • Frame application- Steel, Aluminum, Wood
  • Electrical (continuous duty) .45 Amp @ 12VDC- .25 Amp @ 24VDC
    Specitfy voltage
  • Stainless steel construction
  • Field selectable fail secure(strike remains locked on loss of power) -fail safe strike remains unlocked on loss of power.)
  • Strike body depth 1-11/16"

Available Options: Choose Options Above

  • UL 1034, burglary resistant listed
  • Non-handed
  • ANSI BHMA A156.31, Grade 1 with 791 and 792 options faceplates
  • ANSI/BHMA 156.31, Grade 2 with 783S, 786S, and 789S faceplates
  • Plug-in connector
  • Tamper resistant
  • Endurance 500,000 cycles
  • Horizontal adjustment (783S, 786S and 789S options)
  • Trim Enhancer (701 and 702 options)
  • Pocket adapter (786S,789S option)
  • Static strength 1,000 lbs.
  • Dynamic strength 50 ft-lbs
