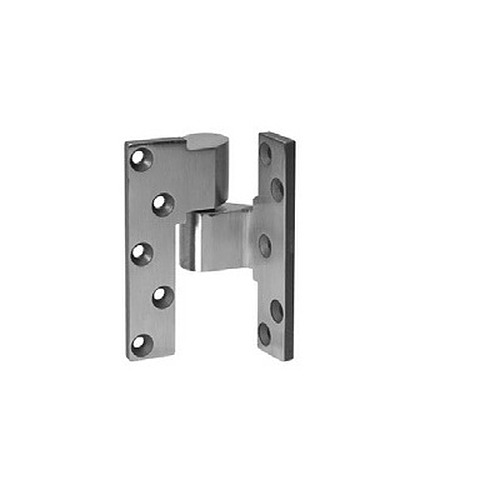

Ives 7244F-INT-26D

Special Order 1-1/2" Offset Full Mortise Intermediate Pivot

Quick Product Details

  • Intermediate Pivot
  • 1-1/2" Offset
  • 3 Hour Fire Rated
  • Handed
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 7244F-INT-26D

Choose Options Below

This Ives 7244F-INT-26D is a 1-1/2" offset fire rated intermediate pivot that is non load-bearing and maintains door alignment. It is handed.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview


Quality and Safety:
  • UL listed 3 hour fire doors.
  • Meets ANSI/BHMA A156.4 C07321.
  • Satin chrome finish.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Full mortise
  • Positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load.
  • Vertical adjustment range is 3/16", includes positive locking.
  • Use for door heights over 7'0". Use an additional intermediate pivot for every 2'6".
  • Not load-bearing
  • Maintains door alignment
  • Furnished with stainless steel machine screws and wood screws.
Style Intermediate Pivot
Used With Use with 7244F or 7245F 1-1/2" Offset Pivot Offset Pivot sets
Application Offset
Offset 1-1/2"
Handing Handed
Door Thickness Minimum 1-3/4" with 1/8" bevel in 2"
Finish Satin Chrome
