LCN 4511AVB Smoothee - Heavy-Duty High Security Closer with Advanced Variable Backcheck

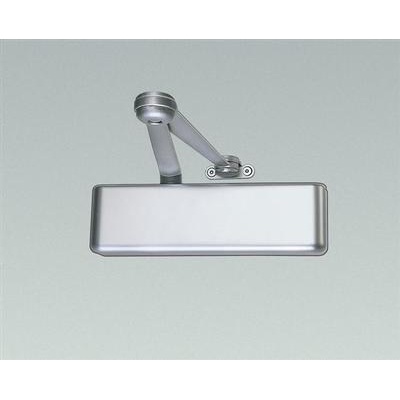

Smoothee - Heavy-Duty High Security Closer with Advanced Variable Backcheck Photo

LCN 4511AVB Smoothee - Heavy-Duty High Security Closer with Advanced Variable Backcheck

SKU: 4511AVB LCN 4511 AVB Smoothee - heavy-duty high security closer with Advanced Variable Backcheck and special components to minimize tampering and vandalism. Forged steel double lever Extra Duty arm and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications. Advanced Variable Backcheck cylinder starts backcheck at approximately 45¡ instead of the normal 75¡.

Overview
Tech Specs

Instructions & Templates

Smoothee - Heavy-Duty High Security Closer with Advanced Variable Backcheck

Serial no. / SKU: 4511AVB

Product Overview

Heavy-duty, high security closer with Advanced Variable Backcheck and special components to minimize tampering and vandalism.
Closer mounts hinge side (pull), specifiy right or left swinging door.
Adjustable size 1 through size 5 and is shipped set to size 3.

Smoothee - Heavy-Duty High Security Closer with Advanced Variable Backcheck

Serial no. / SKU: 4511AVB

Technical Specifications

Forged steel double lever arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications.
With Advanced Variable Backcheck cylinder starts backcheck at approximately
45° instead of the normal 75°.
Standard 4511 closer shipped with Extra Duty Arm (non hold-open), metal security cover, and TORX Machine Screw pack
UL/cUL listed for self-closing, fire-rated doors without hold open.
Tested and certified under ANSI Standard A156.4, grade 1
Cast iron cylinder
Forged steel main arm
All-weather fluid
Available as a special order with other finishes.Contact us directly to arrange for your special order.
