Rixson EH28S-587-105-626

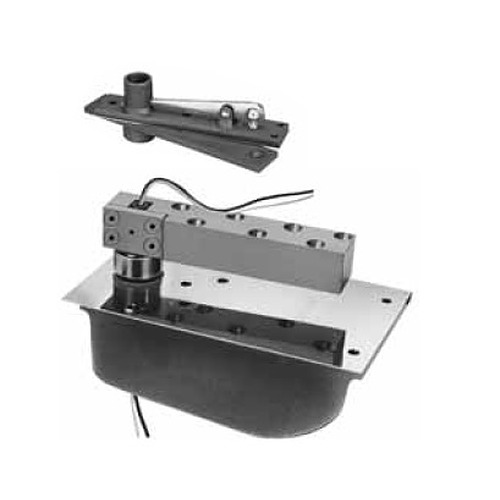

Special Order Center Hung Complete Floor Closer for Power Transfer

SKU: EH28S-587-105-626

Price: $1,533.00

Special Order non-stock item Requires 4 week lead time

Choose Options Below

The Rixson EH28S complete floor closer povides power transfer through closer spindle. Low voltage, Class II wiring (2 wire, 18 gauge only). Special side load arm for 1-3/4" thick doors. A closer package includes everything that you need for a new installation. See more product information below

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $1,533.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Help Me Decide

Face the door from the side that swings away from you.

Overview

Special order non stock item with 4 week lead time.

  • Complete floor closer for power transfer.
  • Includes the H340 top pivot, floor closer body, cement case,587 side load arm for 1-3/4" doors and floor plate.
  • Satin chrome finish.
  • Side load arm for 1/34" thick doors.
  • Selective hold open (SHO) at 105 degrees.
  • Single acting, handed.
  • Doors weight to 500 lbs.
  • Sizes up to 4'0" x 8'6".

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Thrust bearing for greater load capacity.
  • Built-in positive dead stop at 100° prevents door from swinging beyond the opening degree.
  • Separate and independent valves for closing speed, latch speed and backcheck.
  • Not allowed for fire rated doors.
