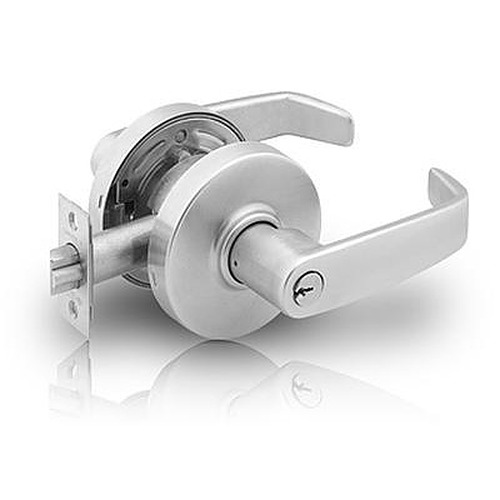

Sargent 7G05

Standard Duty Entrance or Office Lever

SKU: 7G05

Price: $152.00

Choose Options Below

The Sargent 7 line 7G05 entrance function key-in-lever lock is designed for standard duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities and public buildings. Entrance function-outside lever is locked by push/turn button in inside lever. Push button released by key outside or lever inside. Turn button must be released manually. See more product information below

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $152.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Choose Cylinder:

Need Help Deciding?

Help Me Decide

LA Cylinder-6 pin keyed different. The LA cylinder is the Sargent standard cylinder.

60-Prepped for Removable Core (RC) Large format removable cores. Core not included.



Choose Lever:

Overview

  • Entrance or Office function
  • Standard duty commercial key-in-lever lock.
  • For doors 1-3/4" thick standard.
  • Cylinder - Sargent 6 pin LA cylinder keyed different, prepped for Best type IC,
    prepped for Sargent Removable Core (cores not included) or less cylinder.
  • All levers conform to ADA requirement for barrier-free accessibility.
  • Backset -2-3/4" standard. The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.
  • 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip standard.
  • Latch- Brass 1/2" throw,  2-1/4" x 1-1/8".
  • Door Prep 161 (2-1/8" cross-bore with a 2-3/4" backset, and a 1" edge-bore with a mortise 1-1/8" wide and 2-1/4" high.

Available Options: Choose Options Above

  • 05 Entrance or Office.
  • Deadlocking latch.
  • Latch by either lever unless outside lever is locked by push/turn button in inside lever.
  • Push button released by key outside or lever inside.
  • Turn button must be released manually.
  • Key retracts latch when outside lever is locked.
  • ANSI F81.
  • L style rose with B, L or P style lever.
  • Minimum Stile 4-1/2".
  • Internal through-bolts supply strength and stability without requiring additional door preparation.
  • Meets ANSI A156.2 Series 4000 - Grade 2.
  • UL-UL listed to U.S.A. and Canadian safety standards. Listed for 3 hour doors.
    Available in other finishes and 2-3/8" backset and for 1-3/8" thick door as a special order. Contact us directly to arrange your special order.
