Schlage 09-454-07A

07 Lever and A Style Rose Trim Set for L9000 Mortise Lock

SKU: 09-454-07A

Price: $253.00

Choose Options Below

  • Covers are cast stainless steel or brass.
  • Deadbolt,one-piece hardened stainless steel, with 1" projection.
  • Latchbolt, stainless steel 3/4" projection one-piece, anti-friction reversible latch.
  • 4-7/8" ANSI Strike with 1-1/4" curved lip.
  • Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.
  • ADA,Meets A117.1 Accessibility Code.
  • Complies with American Disability Act.
  • Meets BOMA International 4.13.8.
  • UL and cUL Listed for use with 3 hour fire “A” label 4 x 10 single and 8 x 10 double and lesser class doors.
  • Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies.
  • Available in many other finishes.Contact us for pricing.
See more product information below

  • In Stock!
  • Order in the next 31 hours 39 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $253.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Choose Cylinder:

Overview

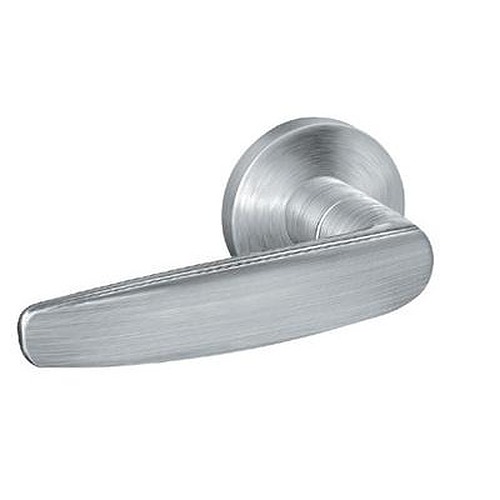

  • 07 Lever with "A" Rose design trim set.
  • The trim pack 09-454-07A is for Schlage functions L9010-passage, L9070-classroom, L9080-storeroom and L9465-storeroom w/deadbolt.
  • Trim sets include levers, rose, mounting screws, mounting plate, spring cages, and strike box.
  • Lock body, armored front, strike and cylinder not included.
  • Trim sets are for doors 1-3⁄4" thick .
  • The A rose has a diameter of 2-1/8".
  • Satin chrome finish.

Available Options: Choose Options Above

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

07 Lever and A Style Rose Trim Set for L9000 Mortise Lock
