Schlage L9010

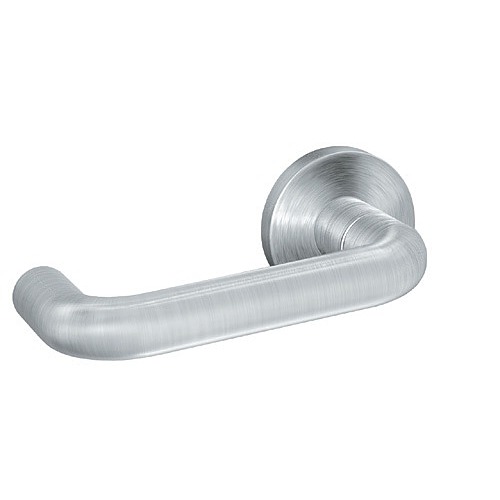

Passage Function Complete Mortise Lock with Lever and Rose

Quick Product Details

  • Complet Passage Function Mortise lock
  • Passage Function
  • Heavy Duty

or for better pricing

Price: $613.00 /each

SKU: L9010

Choose Options Below

This Schlage L9010 is a mortise lock set with a lever and rose contains everything necessary for a new or replacement application. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L9010 operates with the passage function.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $613.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

03-Lever with 03-Lever with "A" style rose
06 Lever with 06 Lever with "A" style rose +$77.00
07 Lever with 07 Lever with "A" style rose +$77.00

Help Me Decide

"A" style rose has a diameter of 2-1/8"

Choose Finish:

Satin Chrome-626 Satin Chrome-626

Overview


Suited for:
  • Heavy duty commercial applications

Quality and Safety:
  • Meets ANSI/BHMA A156.13 series 1000 Grade 1 operational security requirements
  • UL listed for 3 hour fire door
  • Meets ADA requirements for barrier free accessibility
  • 3 year limited warranty

Available Options: Choose Options Above

  • Lever: info icon

    • 03-Lever with "A" style rose
    • 06 Lever with "A" style rose
    • 07 Lever with "A" style rose
  • Finish:

Product at A Glance

Style Complete mortise lock set
Grade Extra Heavy Duty
Function Passage Function:
- Outside and inside levers are free at all times
- ANSI F01
Handing Non-handed - easily reversible
Rose "A" style rose with 2-1/8" diameter
Backset 2-3/4" (standard)
Strike Curved lip strike 1-1/4" x 4-7/8" X 1-3/16" lip to center with dust box standard
Latch Stainless steel latch with anti friction tongue
Throw 3/4"
Door Thickness 1-3/4"
Lock Body Size 4-7/16" X 6-1/16" X 1"
Armored Front 1-1/4" X 8" X 7/32"
