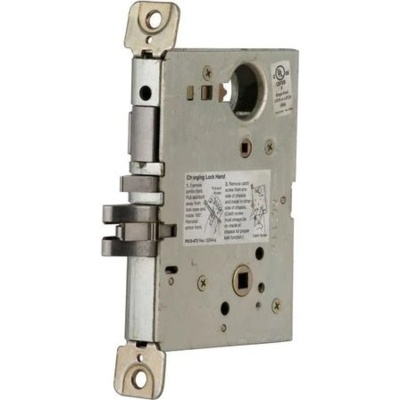

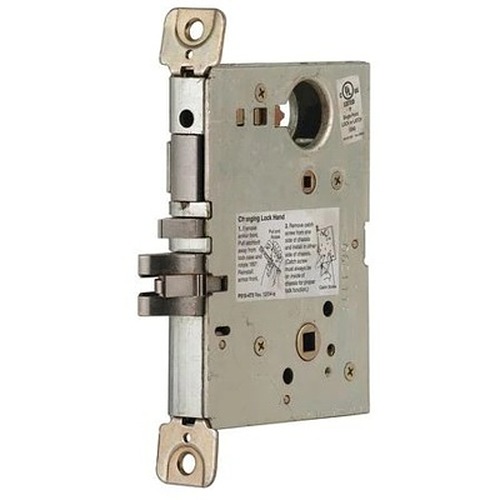

Schlage L9456LB

Corridor Mortise Lock Body with Deadbolt

SKU: L9456LB

Price: $151.00

Choose Options Below

The Schlage L9456LB Corridor Lock function mortise lock body with Deadbolt, Deadbolt thrown or retracted by key outside or inside thumbturn. Turning inside lever simultaneously retracts deadbolt and latchbolt and unlocks outside lever. Mortise locks are ideal for use in schools, hospitals and factories where the hardware must deliver consistent, dependable operation and stand up to constant use and abuse. See more product information below

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $151.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Armored Front:

Help Me Decide

  • Armor Front for L9456/L9473.
  • Satin chrome finish-626.
  • 1-1/4” x 8” x 7/32”.
  • Mounting screws are included with armor fronts.

Choose Strike:

Help Me Decide

Standard square corner strike for Schlage L9000 series mortise locks

1-1/4” x 4-7/8” x 13/16” Lip. Satin chrome finish





Overview

  • Corridor with Deadbolt function lock body only.
  • Latchbolt retracted by lever from either side.
  • Deadbolt thrown or retracted by key outside or inside thumbturn.
  • Throwing deadbolt locks outside lever.
  • Turning inside lever simultaneously retracts deadbolt and latchbolt and unlocks outside lever.
  • Inside lever is always free for immediate egress
  • Lock bodies are furnished with mounting screws and templates only.
  • Lock trim, armored front, strike and cylinders must be ordered separately.
  • For doors 1-3⁄4" thick standard.
  • Backset 2-3⁄4" only.

Available Options: Choose Options Above

  • Armored Front: info icon

    • No Armor Front Needed
    • Armor Front- Satin Chrome Finish (09- 664)
  • Strike: info icon

    • No Strike Needed
    • Standard Strike for L9000 Series -Satin Chrome Finish (10-072)
  • Ansi F13, L9456 Corridor with Deadbolt function.
  • Handing -shipped right hand, easily field reversible without disassembly.
  • Lock body size- 4-7/16” x 6-1/16” x 1”.
  • Armored Front-1-1/4” x 8” x 7/32”.
  • 3/4” throw stainless steel latch with anti-friction tongue.
  • Strike, ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center with dust box standard.
  • ANSI A156.13 Series 1000, Grade 1 Operational and Security, UL Listed for 3-hour fire door (except L9076 and L9007).

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Corridor Mortise Lock Body with Deadbolt
