Schlage M450

Electromagnetic Lock

Price: $488.00 /each

SKU: M450

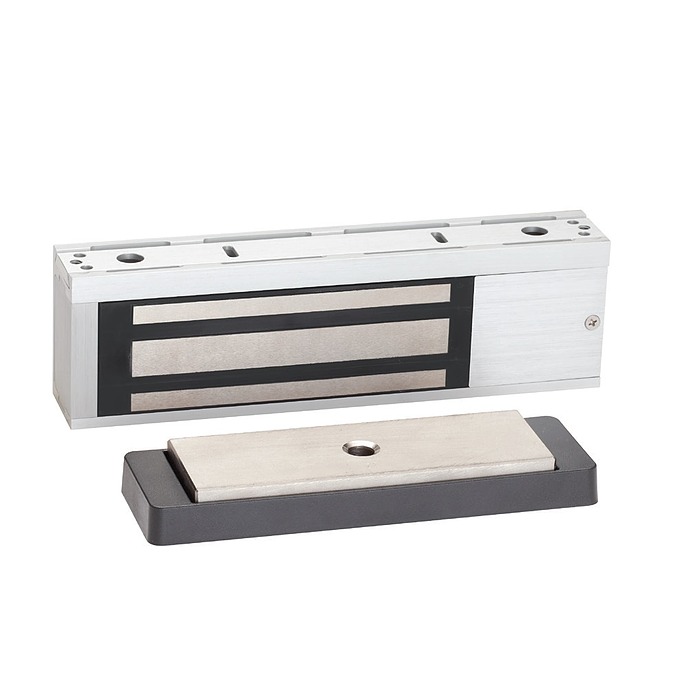

The Schlage M450 is a High Security Electromagnetic Lock designed to provide automatic voltage sensing for 12 and 24 volts DC.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 2 hours 59 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

  • Holding Force meets or exceeds BHMA standard of 1000 lbs.
  • For single doors.
  • Height 3" x Length 10-1/4" x depth 1-3/4".
  • Automatic Voltage Selection (AVS) senses the voltage applied to the lock
    and responds accordingly.
  • Current Draw-.75A @ 12 VDC. .38A @ 24 VDC.
  • Input Voltage 12/24 VDC, automatic dual voltage.
  • Armature mount allows armature to pivot compensating for slight opening imperfections.

More Info

  • Wire Gauge 14-22 AWG.
  • Weight -10 lb.
  • Bayonet mount makes installation simpler by not requiring magnet to beheld overhead
    while mounting screws are installed.
  • New design allows for RH/LH configuration in the field.
  • UL1034 Burglary-Resistant Electronic Locking Mechanisms.
  • UL10C Positive Pressure Fire Tests of Door.
  • Assemblies and ANSI/BHMA Grade 1 certifications.
