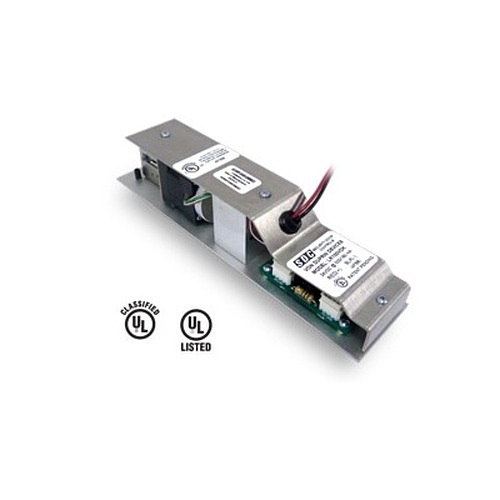

SDC LR100DXK

Special Order Electric Latch Retraction Kit

Quick Product Details

  • Electric Latch Retraction Kit
  • For use with: Detex 20 Series SVR Devices
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: LR100DXK

SDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. For use with Detex 20 Series surface vertical rod exit devices

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Non-Stock Special Order with 2-3 week lead time
  • Field install motor driven quite latch retraction.
  • When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.
  • The latch retraction mechanism may be activated by an access control, remote control device or building automation system.
  • UL Classified for use with 3Hr fire rated and non-fire rated mechanical exit devices.
  • The exit device always provides uninhibited egress.
  • Retrofits Von Duprin exit devices without removing device from the door.
  • For use with 36"and 48" Detex 20 Series surface vertical rod exit devices.
  • Low 700mA Inrush, 200 mA Continuous.
  • 24VDC.
