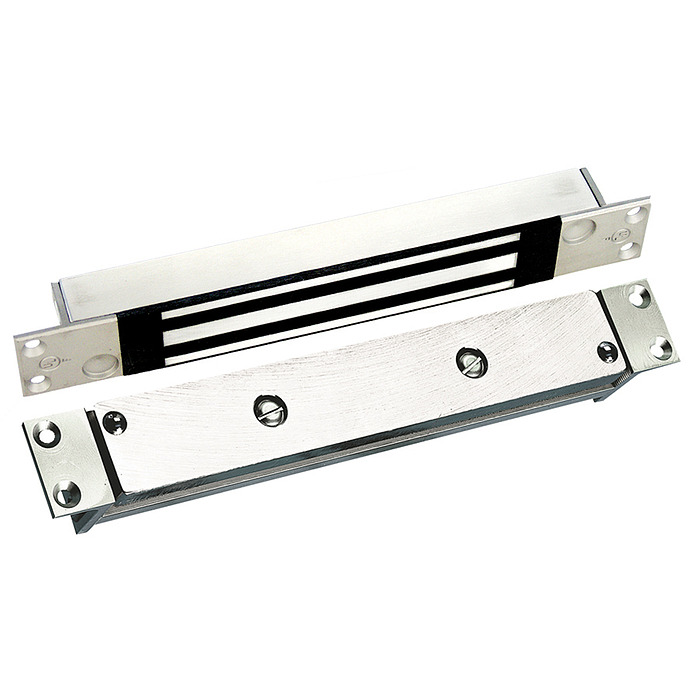

Securitron SAM

Electromagnetic Shear Lock


Price: $480.00

The Securitron SAM Shear Aligning Magnalock mounts fully concealed into wood, steel or aluminum doors.This concealed Magnalock is ideal for traffic control or medium security. See more product information below

We will not be able to accept a return for this item once electrical power has been applied to the item.

Have a question? Need help?
Call Us: 1-866-749-7661

  • In Stock!
  • Order in the next 15 hours 34 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • ×
    Getting shipping methods...

Have a question about this product?


  • Shear Aligning Magnalock
  • ANSI/BHMA A156.23, Grade 1
  • Automatic dual voltage - no field adjustment required. 12 or 24VDC.
  • Instant release circuit - no residual magnetism.
  • Dimensions: Magnalock:10-7/8"L x 1-3/16"D x 1-1/2"H. Strike: 10-7/8"L x 1-7/16"D x 1-1/2"H.
  • 1200 lbs. holding force.
  • Shear Aligning Magnalock mounts fully concealed into wood, steel or aluminum doors
  • Fully sealed electronics-tamper proof & weather proof.
  • Mounted using steel machine screws.
  • Satin stainless steel finish.
  • Replacement No Fault Warranty. MagnaCare® warranty replaces any product that Securitron manufactures, for any failure reason, for the
    life of the installation. HASSLE FREE, LIFETIME, NO FAULT.

Tech Specs

  • Current Draw and Voltage: 320mA at 12VDC; 170mA at 24VDC.
  • Operating temperature: -40 to +140F.
  • UL Listed.
  • 10 feet of jacketed, stranded conductor.
  • ANSI/UL 294 Listed
SECURITRON MAGNALOCK CORPORATION warrants that it will replace at customer’s request, at any time for any reason, products manufactured and branded by SECURITRON since January 1, 1999. SECURITRON will use its best efforts to ship a replacement product by next day air freight at no cost to the customer within 24 hours of SECURITRON’s receipt of the defective product from customer. This MAGNACARE warranty also does not apply to custom, built to order, or non-catalog items, items made by others (such as batteries),  returns seeking replacement with anything other than the identical product, or products installed outside of the United States or Canada. See Securitron's web site, http://www.securitron.com for more information about the MagnaCare Warranty.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Electromagnetic Shear Lock
