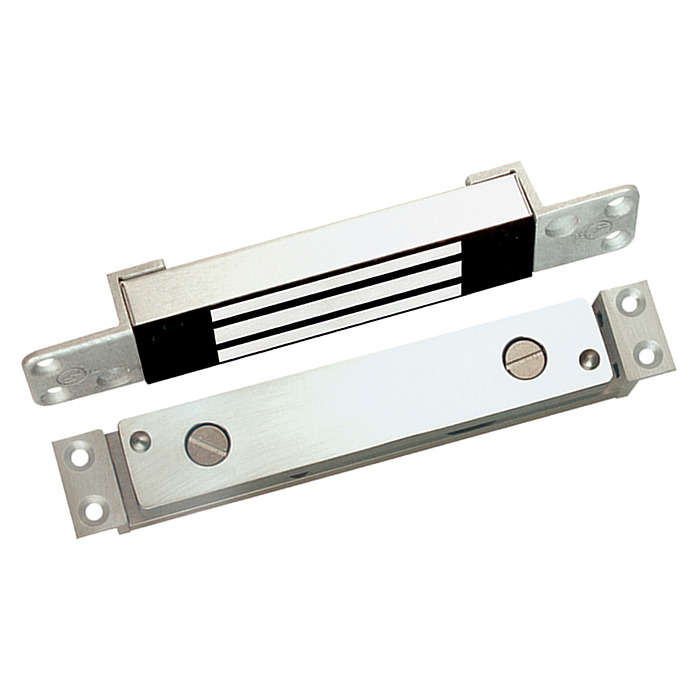

Securitron SAM2-24

Electromagnetic Mini Shear Lock

SKU: SAM2-24

Price: $378.00

The Securitron SAM2-24 Shear Aligning Magnalock mounts fully concealed and is ideal for smaller applications, like cabinet doors and sliding closet doors. See more product information below

We will not be able to accept a return for this item once electrical power has been applied to the item.

Have a question? Need help?
Call Us: 1-866-749-7661

  • In Stock!
  • Order in the next 17 hours 55 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • ×
    Getting shipping methods...

Have a question about this product?


  • Smaller dimensions for difficult installation areas, 7.2" long x 1.15" wide x 1" high.
  • 600 lbs holding force.
  • 24 VDC.
  • Instant release circuit-no residual magnetism.
  • Fully sealed electronics-tamper proof & weather proof.
  • Mounted using steel machine screws.
  • Satin stainless steel finish.
  • Replacement No Fault Warranty. MagnaCare® warranty replaces any product that Securitron manufactures, for any failure reason, for the
    life of the installation. HASSLE FREE, LIFETIME, NO FAULT.

Tech Specs

  • Current draw and voltage: 62mA at 24VDC only.
  • Operating temperature: -40 to +140F.
  • Fail Safe.
  • UL Listed.
  •  6 feet of jacketed, stranded conductor.
SECURITRON MAGNALOCK CORPORATION warrants that it will replace at customer’s request, at any time for any reason, products manufactured and branded by SECURITRON since January 1, 1999. SECURITRON will use its best efforts to ship a replacement product by next day air freight at no cost to the customer within 24 hours of SECURITRON’s receipt of the defective product from customer. This MAGNACARE warranty also does not apply to custom, built to order, or non-catalog items, items made by others (such as batteries),  returns seeking replacement with anything other than the identical product, or products installed outside of the United States or Canada. See Securitron's web site, http://www.securitron.com for more information about the MagnaCare Warranty.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Electromagnetic Mini Shear Lock
