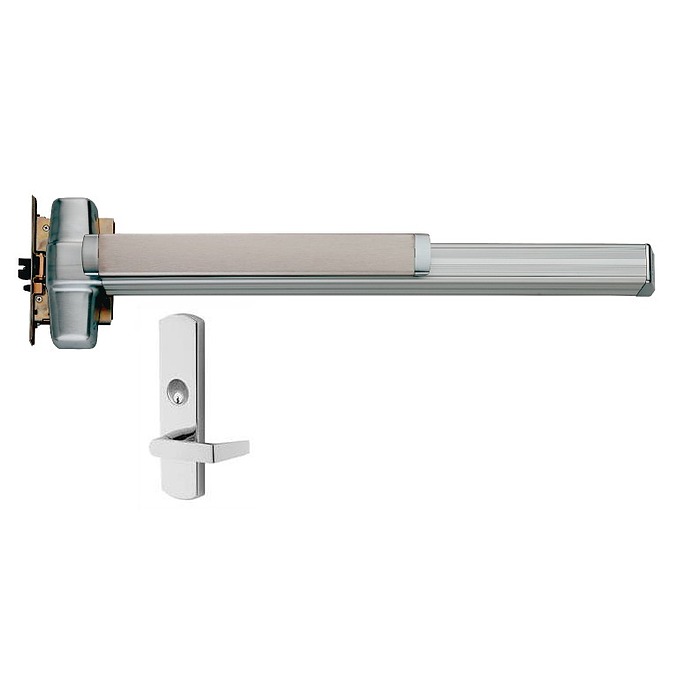

Von Duprin E-RX-9975L-NL-FSE-US26D

Special Order Electrified Mortise Exit Device with Keyed Lever and RX Switch

Get a Quote

Special Order non-stock item Requires 6 week lead time

SKU: E-RX-9975L-NL-FSE-US26D

The Von Duprin E-RX9975L-NL electric mortise lock device has all the versatility and advantages of the standard mortise lock device, plus the advantage of being electrically controlled by a remote switching device, an access control system or an automatic fire alarm system.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Special Order
FREE Shipping

Have a question about this product?

Get a Quote

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse - LHR

Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Finish:

Satin Chrome - 626

1 Choose Handing:
2 Choose Finish:
Qty.

Get a Quote
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Special order item with 4 week lead time

3' bar length
The device features the E7500 mortise lock. The E7500 controls the locking of the outside trim.
The outside trim cylinder retracts the latch bolt for mechanical override.
RX-Request to exit.used to signal the use of an opening. This device is equipped with one internal SPDT switch which
monitors the pushpad.The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power
supply.
Lever trim does not include 1-1/4" mortise cylinder
Electric unlocking of outside trim controlled by a remote switching device, an access control system or an automatic fire alarm system
24 VDC continuous duty solenoid
The E7500 lock contains a SPDT signal to monitor the outside trim condition (locked or unlocked) and a second SPDT signal switch to monitor the latch bolt.
Fail secure (FSE) -unlocked when energized, locked when de-energized or during power failure.
The E option does not include the power transfer from door to frame, the power supply or the control operator

Available Options: Choose Options Above

Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse - LHR
- Right Hand Reverse - RHR
Finish:
- Satin Chrome - 626
