Yale 7110F-36-AU626F-630

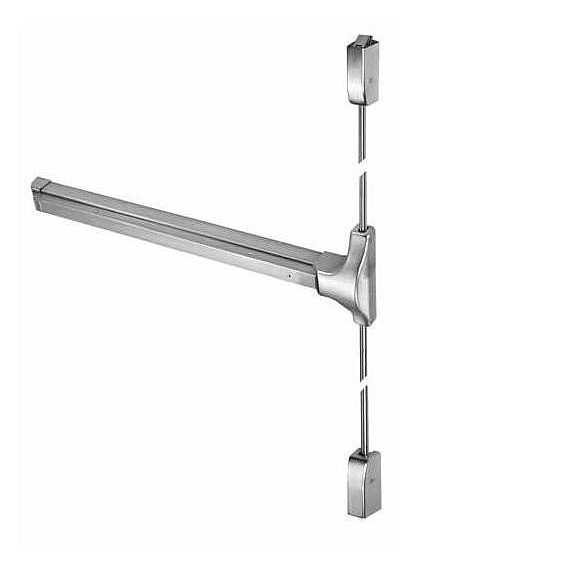

Special Order Fire Rated Surface Vertical Rod Exit Device

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 7110F-36-AU626F-630

Special Order Fire Rated Surface Vertical Rod Exit Device

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 6 week lead time.
Fire rated surface vertical rod exit device to be used on wide stile or flush doors up to 7'  where
two-point latching is desired.
  • Designed for wide stile and flush doors
  • Handed. Specify hand (field reversible)
  • Bottom deadbolt for secure latching
  •  Fully adjustable roller strike

Product at A Glance

  • Door Opening Width,for 30" - 36" doors.
  • Door Opening Height, standard door height 7', with the device centerline at 39-15/16"from floor.
  • Door Thickness: 1-3/4"  standard.
  • Minimum Stile Width: 4-1/2".
  • Latchbolt: Top: 3/4" throw, pullman-type with automatic deadlatching Bottom: 5/8" throw deadbolt, held retracted during door swing.
  • Strike: Top: Roller type 791. Bottom: Flush mounted 790.
  • Classroom function lever trim,key locks or unlocks lever.

More Info

  • ANSI/BHMA: Certified A156.3 Type 2, Grade 1
  • UL/cUL: FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (8' x 8' pairs, 3 hr.)
  • Warranty: 5-year limited.
