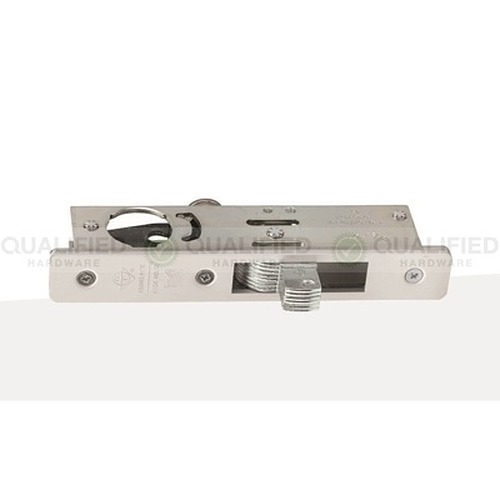

Adams Rite 1830-628

Bottom Rail Deadlock Swing Bolt

Price: $107.00 /each

SKU: 1830-628

Choose Options Below

The Adams Right 1830-03-628 Bottom Rail Deadlock provides bottom rail locking in ultra-narrow stile or tempered glass doors. Tamper-proof with an armored faceplate.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $107.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Backset/Cylinder Height:

31/32" Backset/Cylinder Heigh-02
1-1/8-Backset/Cylinder Heigh-03


  • For bottom rail locking of ultra-narrow stile or tempered glass doors whose bottom rail (shoe) is too shallow for the MS1861 Bottom Rail Deadbolt.
  • 360° turn of key or thumbturn throws or retracts the counter balanced bolt.
  • This lock requires 2 mortise cylinders with the MS cam, not included.
  • Key can be removed only when bolt is in a positively locked or unlocked position.
  • Deadbolt-15/32" x 5/8" x 2-1/8" with 5/8" throw. Six-ply laminated steel with eight plys within case. Center ply has alumina-ceramic
    core to deter hacksaw attack.
  • Backset/cylinder height-31/32" and 1-1/8" only.
  • Lock case, steel with corrosion-resistant plating, measures 1" x 6" x depth (depth varies with cylinder height).
  • Strike #4006 not included, available separately.
  • Finish-628, Clear Anodized Aluminum.
  • This lock is not for use on wood doors.

Available Options: Choose Options Above

  • Backset/Cylinder Height:

    • 31/32" Backset/Cylinder Heigh-02
    • 1-1/8-Backset/Cylinder Heigh-03
