Adams Rite 2331

Heavy duty Deadbolt Lock

Quick Product Details

  • Deadbolt Lock
  • For Wood or Hollow Metal Doors
  • Heavy Duty
Price: $214.00 /each

SKU: 2331

Choose Options Below

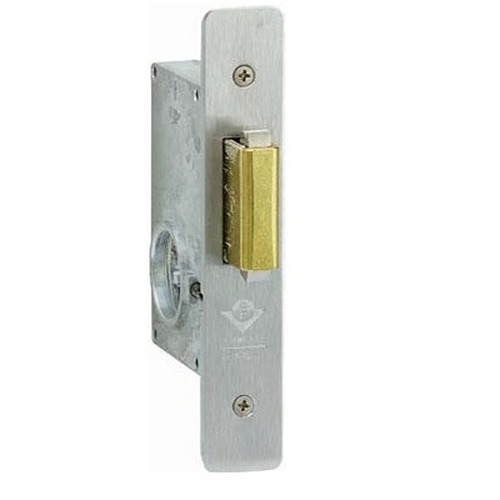

This Adams Rite 2331 is deadbolt lock with a very large brass bolt and two stainless steel dogs as an extra measure of security. It is designed for heavy duty metal and wood sliding doors with a backset of 1-3/4" only.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $214.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Choose Cylinder 1" Mortise Cylinder:

No Mortise Cylinder Needed
1 1" Mortise Cylinder with Schlage C Keyway +$14.00


  • 5 year limited warranty from date of manufacture

Special Orders Available:
  • More finishes than shown in the above options
Contact us directly to place your special orders.

Available Options: Choose Options Above

  • Finish:

  • Cylinder 1" Mortise Cylinder:

    • No Mortise Cylinder Needed
    • 1" Mortise Cylinder with Schlage C Keyway

Product at A Glance

  • This deadbolt throws a massive brass bolt into its strike, then expands two stainless steel dogs to secure the door
  • A single turn of the key expands or retracts the bolt
  • It operates with standard mortise cylinder (wide Yale-type cam) or with a standard mortise cylinder thumbturn.
  • There is no latch action
  • 360° turn of key or thumbturn extends and expands or retracts and withdraws the bolt
  • Key cannot be removed unless bolt is positively locked or totally retracted
Style Deadbolt
Grade Heavy Duty
Application Heavy duty metal or wood sliding doors
Backset 1-3/4"
Bolt 1/2" x 1-1/2" with 3/4" horizontal throw and 11/32" expansion above and below main bolt - (brass with stainless steel dogs)
Case - 7/8" x 3-5/8" x 2-5/8" deep
- Zinc Alloy
Faceplates - Armor flat faceplate
- Brass
- 1" x 5-3/4"
Strike - 1/8" x 1" x 4-11/16" with 5/8" x 1-5/8" opening
- brass with 4 screw mounting
- (same finish as faceplate)

More Info

Deadbolt locks are designed with special features to ensure utmost safety of your entrance and to prevent unwanted entry via lock picking. This Adams Rite 2331 deadlock throws a very large brass bolt into the strike and then it expands two stainless steel dogs to secure the door. It is a great, safe choice for your heavy duty hollow metal and wood doors.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product


Scroll for More Product Information
