Adams Rite 4300-30-201

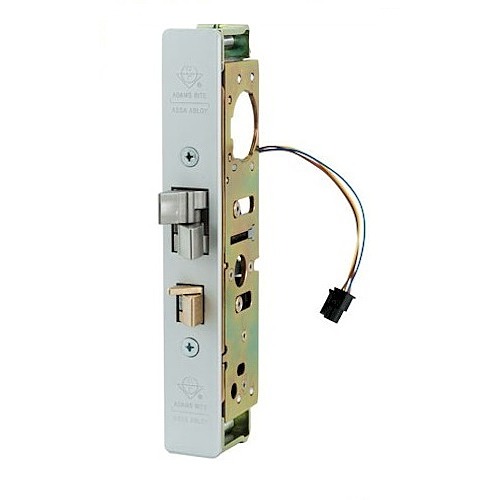

Steel Hawk 4300 Electrified Deadlatch For Aluminum Stile Doors

Price: $321.00 /each

SKU: 4300-30-201

Choose Options Below

The Adams Rite Steel Hawk 4300 Electrified Deadlatch (eLatch) combines non-handed, narrow backset, mechanical locking hardware with electrified access control for aluminum stile doors.

  • Stock Item
  • Order in the next 37 hours 17 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $321.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

628-Clear Anodized Aluminum 628-Clear Anodized Aluminum
313-Dark Bronze Anodized Aluminum 313-Dark Bronze Anodized Aluminum

Choose Cylinder:

1 1" Mortise Cylinder-Schlage SC1 Keyway +$15.00
No Cylinder Needed


  • The 4300 eLatch combines mechanical locking hardware with electrified access control.
  • Always operable from the inside via handle or paddle device. Entry via keyed mortise cylinder or access control device.
  • Mortise cylinder not included.
  • 1-3/4" minimum stile.
  • 1-1/8" backset.
  • Interchangeable without stile modification for MS Deadlocks or 4500 and 4900 Deadlatches.
  • 1-3/4" minimum door thickness required.
  • Operates on 12, or 24 volt DC power and is rated for continuous duty. Field selectable .
  • Fail-secure-requires power to be applied to unlock the strike lip. In the case of a power loss, the strike will be locked.


Available Options: Choose Options Above

More Info

  • Latchbolt, 5/8" x 1" x 5/8" throw. Stainless steel.
  • Case,15/16" x 5-13/16" x depth. Depth varies by backset by backset.
  • Faceplates, 1" x 6-7/8", with flat and radius faceplates, strike, and machine screws for mounting.
  • Strike, 4-5/8" mortised-flush for flat/standard jamb, covering existing MS® deadlock preparation or for new applications.
  • Units are equipped with a quick connect plug-in type connector.
  • Supplied with universal cam plug 4581 to work with specified handles or paddle operators.
  • Cylinder, paddle or handle available separately.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product



4300 Installation thumbnail

4300 Installation
