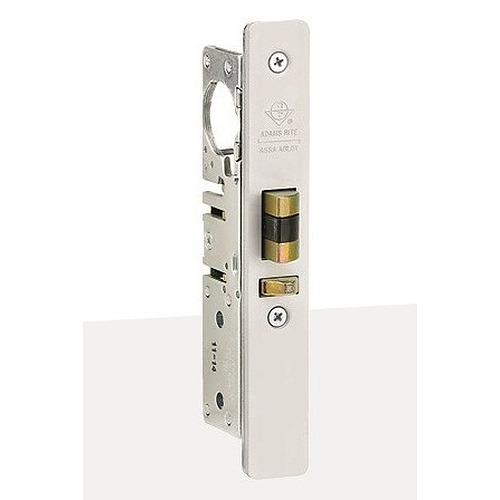

Adams Rite 4510-335

Special Order Narrow Stile Standard Duty Aluminum Door Deadlatch

Quick Product Details

  • Deadlatch
  • For Aluminum Doors
  • Narrow Stile
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 4510-335

Choose Options Below

This Adams Rite 4510 aluminum door deadlatch is for doors with a narrow stile, measuring a minimum of 1-3/4" thick. It is designed with the ability to allow for free-entrance at specific times and to be exit only at other times. Turning the key in the reverse direction while the bolt is held retracted, retains the bolt, to allow two-way traffic.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

335 - Black Anodized Finish 335 - Black Anodized Finish

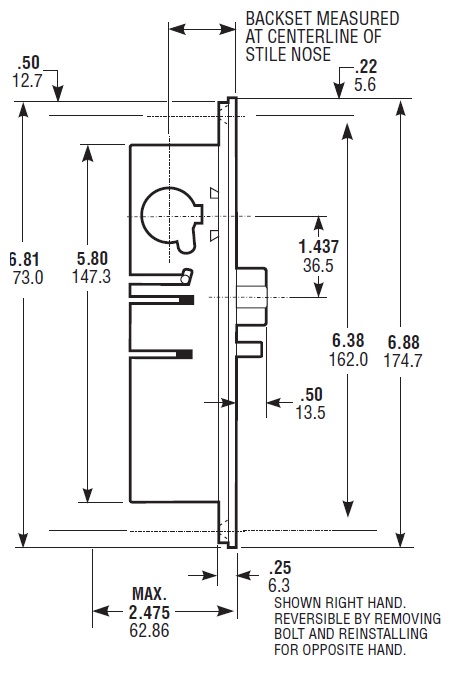

Choose Backset:

Need Help Deciding? QH chevron down
7/8" Backest
31/32" Backset
1-1/8" Backset
1-1/2" Backset

Help Me Decide


Choose Handing:

LH/RHR Left Hand/ Right Hand Reverse
RH/LHR Righ Hand/ Left Hand Reverse

Help Me Decide





  • Right Hand /Left Hand - for an inswinging door. The door Pulls to the inside or Pushes from outside
  • Left Hand Reverse/ Right Hand Reverse - for an outswinging door. The door Pulls to the outside or Pushes from the inside.

Overview

Non-Stock Special Order with 3-4 Week lead time

Quality:
  • Auxiliary Bolt - all metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry.
  • 5 year limited warranty from date of manufacture

Available Options: Choose Options Above

  • Finish:

  • Backset: info icon

    • 7/8" Backest
    • 31/32" Backset
    • 1-1/8" Backset
    • 1-1/2" Backset
  • Handing: info icon

    • LH/RHR Left Hand/ Right Hand Reverse
    • RH/LHR Righ Hand/ Left Hand Reverse

Product at A Glance

  • A strike is not included
  • Interchangeable without stile modification with any MS1850S deadbolt of the same backset and faceplate shape.
  • Operation: turn key or operate handle to retract spring-loaded latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key.
  • Uses any standard mortise cylinder with MS cam (cylinder not included)
Style Deadlatch
Application Aluminum narrow stile doors
Handing Handed - easily reversible
Stile Minimum 1-3/4" thick
Latchbolt - 1/2" x 1" x 1/2" throw
- all metal with hardened steel internal pins
Case 1" x 5-13/16" - depth varies by backset
Faceplates 1" x 6-7/8"
Finish 335 - Black Anodized

More Info


There are certain applications where at some points during the day, usually during business hours, free entrance is necessary to be allowed, while at other times, the door needs to function as an exit only opening. This 4510 deadlatch is designed specifically for such applications. To allow for two-way traffic, simply turn the key in the reverse direction while the bolt is retracted and it will remain that way.
