Adams Rite 4530-3-101-628

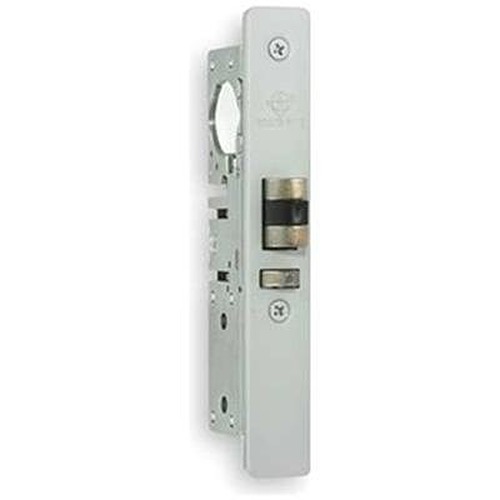

Special Order Narrow Stile Standard Duty Aluminum Door Deadlatch

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 4530-3-101-628

Choose Options Below

4530 Deadlatches are designed to fit without alteration, the stile cutout for older MS1850 Deadlocks and 4250 Deadlatches of same backset.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

LH/RHR (5)
RH/LHR (6)

Help Me Decide



  • Right Hand /Left Hand - for an inswinging door. The door Pulls to the inside or Pushes from outside
  • Left Hand Reverse/ Right Hand Reverse - for an outswinging door. The door Pulls to the outside or Pushes from the inside.

Overview

Special order non stock item with 4 week lead time
  • For narrow stile aluminum doors, 1-3/4" minimum thickness.
  •  Anodized aluminum finish.
  • 4530 Deadlatches are designed to fit without alteration, the stile cutout for older MS1850 Deadlocks and 4250 Deadlatches of same backset.
  • Includes faceplate, 1-1/4"x 7-3/8", strike not included.
  • Operation: turn key or operate handle to retract spring-loaded latch bolt. To hold bolt retracted, push it in and secure by reverse turn of key.
  • Uses any standard mortise cylinder with MS cam, cylinder not included
  • Case is steel with corrosion-resistant plating. 1" x 5-13/16" x depth. (Depth varies by backset).
  • Handed.
  • Cylinder backset- 1-1/8"

Available Options: Choose Options Above

  • Handing: info icon

    • LH/RHR (5)
    • RH/LHR (6)

More Info

  • Latch bolt is 1/2" x 1" x 1/2" throw. All metal with hardened steel internal pins.
    Handing is reversible without special tools.
  • Auxiliary Bolt - all metal, deadlocks latch bolt to prevent “loiding” or case-knife entry.
