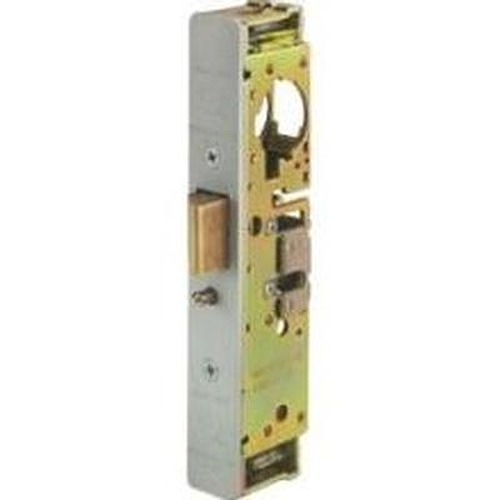

Adams Rite 4900

Narrow Stile Heavy Duty Aluminum Door Deadlatch

Quick Product Details

Aluminum Door Deadlatch
Narrow Stile

Price: $86.00 /each

SKU: 4900

Choose Options Below

This Adams Rite 4900 is a narrow stile deadlatch for aluminum doors. This deadlatch offers flexibility of traffic control and installation. It is great for applications that require occasional free entrance since a reverse turn of the key while the bolt is held retracted retains the bolt to allow for two-way traffic .

Stock Item
Order in the next 3 hours 16 minutes to ship TODAY
FREE Same-Day ShippingWhen ordered before 2PM ET
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Price: $86.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

628 Clear Anodized Aluminum

313 Dark Bronze Anodized Aluminum

Choose Handing:

LH/RHR Left Hand/ Right Hand Reverse

RH/LHR Righ Hand/ Left Hand Reverse

Help Me Decide

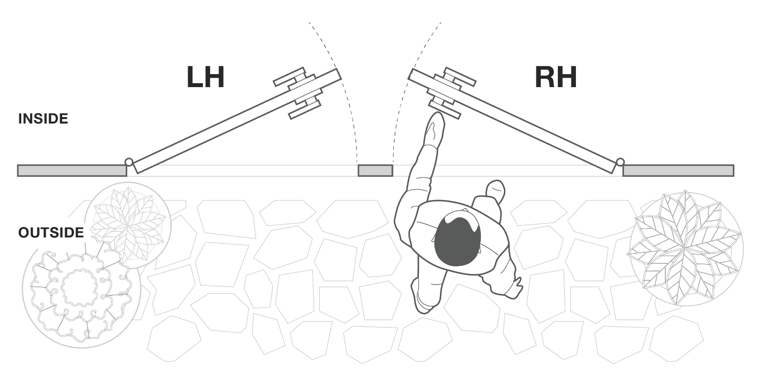

Right Hand /Left Hand - for an inswinging door. The door Pulls to the inside or Pushes from outside

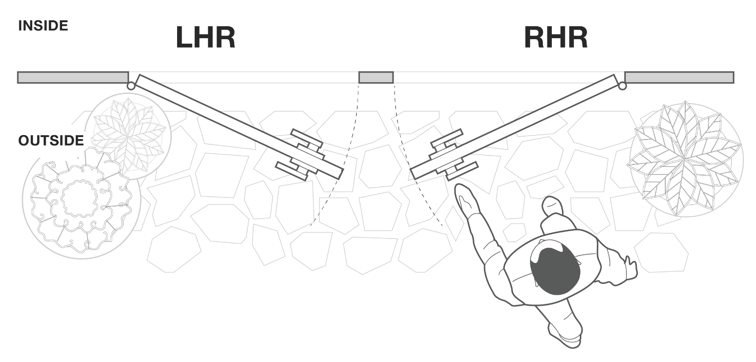

Left Hand Reverse/ Right Hand Reverse - for an outswinging door. The door Pulls to the outside or Pushes from the inside.

Choose Backset:

1-1/8" (3)

1-1/2" (4)

Help Me Decide

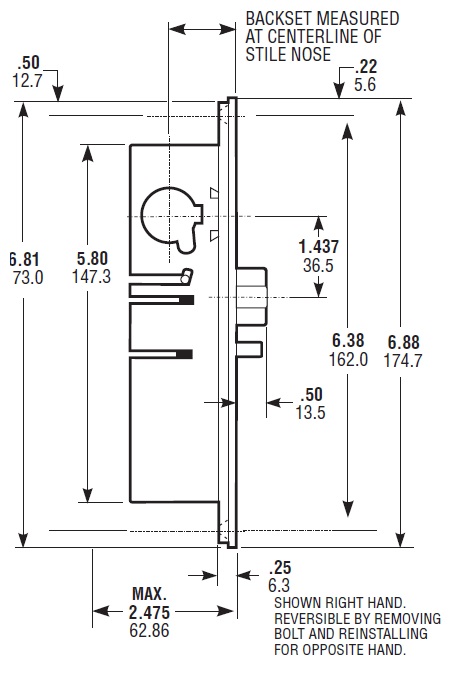

The backset is the measured distance from the edge of a door to the center of the cylinder.

1 Choose Finish:
2 Choose Handing:
3 Choose Backset:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Quality:

5 year limited warranty from date of manufacture

Available Options: Choose Options Above

Finish:
- 628 Clear Anodized Aluminum
- 313 Dark Bronze Anodized Aluminum
Handing:
Handing
Right Hand /Left Hand - for an inswinging door. The door Pulls to the inside or Pushes from outside

Left Hand Reverse/ Right Hand Reverse - for an outswinging door. The door Pulls to the outside or Pushes from the inside.
- LH/RHR Left Hand/ Right Hand Reverse
- RH/LHR Righ Hand/ Left Hand Reverse
Backset:

Backset

The backset is the measured distance from the edge of a door to the center of the cylinder.
- 1-1/8" (3)
- 1-1/2" (4)

Product at A Glance

Turn the key or operate the handle or paddle to retract the spring-loaded latchbolt. To hold the bolt retracted, push it in and secure by reverse turn of the key.
Uses any standard mortise cylinder with MS cam (not included)
The case is steel with corrosion-resistant plating
Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left beveled edge doors
Retrofits to existing 4500/4700 Deadlatch preparations

Style	Deadlatch
Application	Aluminum narrow stile doors
Handing	Handed - easily reversible with screwdriver
Door Thickness	1-3/4"
Stile	Minimum 1-3/4" thick
Latchbolt	5/8" x 1" x 5/8" throw (solid brass)
Case	7/8"" x 5-13/16" - depth varies by backset
Faceplates	1" x 6-7/8"
Strike	4902 (standard) - 4.63", 4902 for MS1850 strike retrofit

More Info

This deadlatch is perfect for aluminum doors with a narrow . Its case is made of solid steel with corrosion resistant plating. It is of high quality construction and designed for use in heavy duty applications on doors that are a minimum of 1-3/4” thick. This deadlatch can be operated to allow free two-way traffic with a reverse rotation of the key to keep the bolt retracted.
