Adams Rite 7160-519-628

Special Order Electric Strike for Aluminum Jambs with Monitor Switch

Quick Product Details

  • Electric Strike
  • For Aluminum Jambs
  • Used With: Mortise or Cylindrical Latches With 3/4" Projection, Without Deadbolt
  • Voltage-24 VDC
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 7160-519-628

Choose Options Below

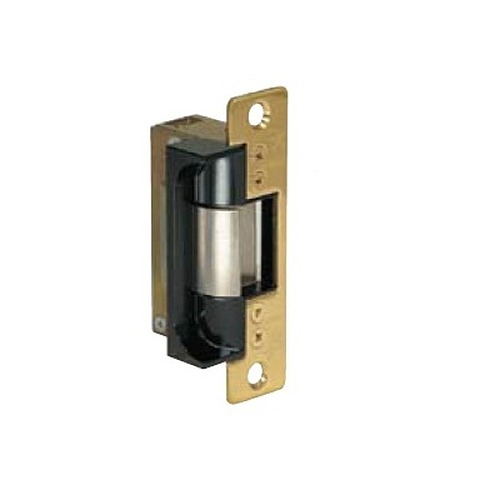

This Adams Rite 7160 is an electric strike with monitor switch for aluminum jamb application where remote control of the opening is necessary. It is used with mortise or cylindrical latches with 3/4" projection and without a deadbolt.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

313 Dark Bronze Anodized Aluminum 313 Dark Bronze Anodized Aluminum
628 Clear Anodized Aluminum 628 Clear Anodized Aluminum

Overview

Special order non stock item with 4 week lead time
Quality:
  • ANSI Grade 1
  • UL listed as burglary resistant
  • 3 year limited warranty from date of manufacture
  • Fail Secure - electric strikes require power to be applied in order to unlock the strike lip. Upon loss of power, the strike is locked.

Available Options: Choose Options Above

Product at A Glance

  • Includes the strike body and faceplate
  • The extremely compact mechanism fits into aluminum jamb or opposing door as shallow as 1-7/8”
  • This strike has a lip designed for 1-3/4” thick doors that close flush with the jamb edge
  • All 3/4” throw latches require a 1/8” minimum door gap
  • Horizontal center line of strike must match center line of mortise latch bolt
Style Electric Strike
Used With Mortise or cylindrical type locksets with 3/4" projection and without deadbolt
Application Aluminum Jambs
Faceplate 1-1/4" wide x 4-7/8" high flat faceplate with radiused corners
Case 1" x 3-3/8" x 1-5/8" deep
Strike Opening 3/4" x 1-7/16" x 5/8" deep
Monitoring Switch Monitoring strikes enable the operator to get a visual or audible signal of the strike's condition
Fail Secure Electric strikes require power to be applied in order to unlock the strike lip. Upon loss of power, the strike is locked.

More Info

This electric strike is used to remotely release locked doors that are operated with mortise or cylindrical locksets with 3/4” projection and without a deadbolt. The mechanism is extremely compact to fit into aluminum jamb applications as shallow as 1-7/8”. The package includes a strike body and a flat faceplate with radiused corners that measures 1-1/4” wide x 4-7/8” in height.
