Adams Rite 7410-M-628

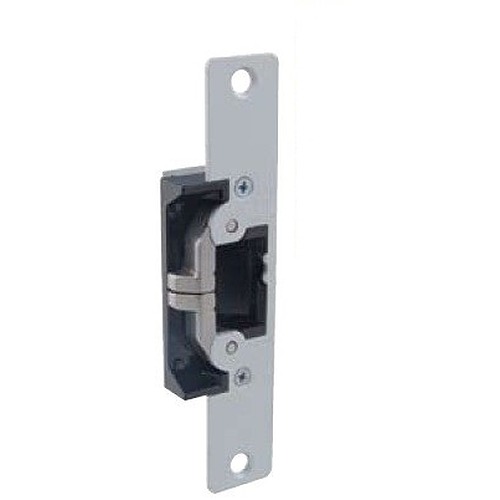

Special Order Ultra-Line Electric strike with Monitor Switch

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 7410-M-628

Choose Options Below

Adams Rite 7400-M electric strike with faceplate for use with any door equipped with an Adams Rite series 4500/4700/4900 (or similar) deadlatch or "key-in-lever cylindrical locks with 1/2" or 5/8" deadlatch.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

313 Dark Bronze Anodized Aluminum 313 Dark Bronze Anodized Aluminum
628 Clear Anodized Aluminum 628 Clear Anodized Aluminum

Overview

  • Special order item with 4 week lead time.
  • Replaces earlier 002, 7510, 7810 or 7110 electric releases in either metal or wooden jambs.
  • Monitoring - Two internally mounted switches (Form "C") to indicate when the latchbolt is engaged in the strike jaws and a locked/unlocked solenoid status.
  • Extremely compact mechanism fits into jambs as shallow as 1-1/16".
  • The strike releases electrically with up to 35 lbs. of door "preload" (pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes).
  • Faceplate, 1-7/16" x 7-15/16.
  • Case 1" x 3-3/8" x 1-1/16" deep.
  • Fail-Safe/Fail-Secure field selectable.
  • Voltage,field selectable 12 or 24 VAC/VDC.
  • Basic 7400 strike has lip of proper length for 1-3/4" thick door that closes flush with jamb edge.

Available Options: Choose Options Above

More Info

  • This non-handed strike features an ultra-compact design and an adjustable stainless steel splitjaw with over 2400lbs. of holding force in fail secure mode.
  • ANSI/BHMA Type EO9321 Grade 1.
  • Listed for Burglary Resistance (UL1034).
