Adams Rite 8430-C-373-36

Special Order Narrow Stile Mortise Exit Device with Cylinder Dogging

Quick Product Details

  • Mortise Exit Device
  • For Aluminum Stile Glass Doors
  • Cylinder Dogging
  • Black Anodized Aluminum Finish
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 8430-C-373-36

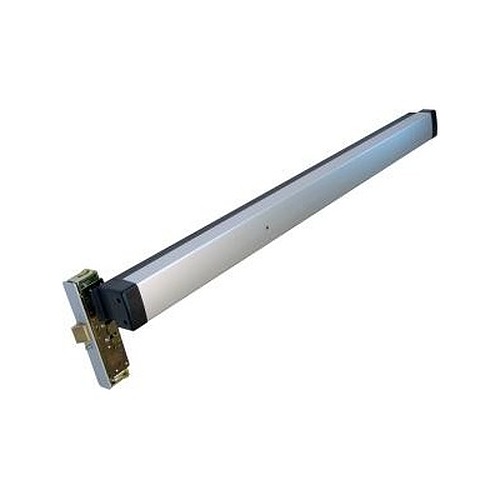

This Adams Rite 8400 Narrow Stile Mortise Exit Device is designed for narrow stile aluminum applications that require a life safety exit device with mortise locking solution. With cylinder dogging. Designed for use in single door applications.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Call for Pricing 1-866-749-7661

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special Order non stock item with 4 week lead time
Quality:
  • ANSI/BHMA 156.3 Grade 1.
  • UL Listed Life Safety..
  • Fully meets building codes and ADA guidelines for accessibility.
  • Black anodized aluminum- 335.
  • Exit only function.
  • For 36" door opening.
  • Cylinder dogging requires a mortise cylinder not included.

Product at A Glance

  • Minimum stile width 2", fits narrow, medium and wide aluminum stile glass doors.
  • Push bar length can be cut to size in the field.
  • The push-bar is made of extruded aluminum.
  • The 8400 was designed to fit standard cutout used for the Adams Rite MS deadlock.
Style Mortise Exit Device
Application Aluminum stile glass doors
Function Exit Only;
- No entry from outside
- Trim available separately
Handing RHR-Right Hand Reverse
Door Thickness 1-3/4" (standard)
Stile Minimum 2"
Projection 2-5/8"
- When dogged 1-5/8"
Backset 1-1/8"

More Info

This spectacular mortise exit device features many options that make it versatile for use in many different application conditions. It is available with three different push-bar lengths and three backset options. It is also available as right hand reverse or left hand reverse to properly suit the opening in which it is going to be placed.
