Adams Rite 8600-C-36

Special Order Narrow Stile Concealed Vertical Rod Exit Device with Cylinder Dogging

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 8600-C-36

Choose Options Below

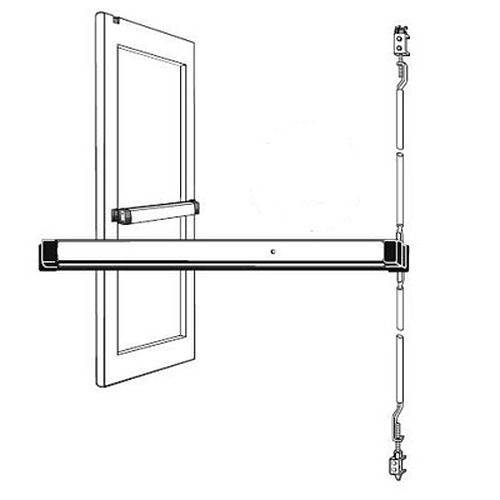

The Adams Rite 8611 and 8622 narrow stile concealed vertical rod exit devices are for aluminum stile glass doors with 2" minimum stile.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

8611-628 Clear Anodized Aluminum 8611-Clear Anodized 628 8611-628 Clear Anodized Aluminum
8622-313 Dark Bronze Anodized Aluminum 8622-Dark Bronze Anodized-313 8622-313 Dark Bronze Anodized Aluminum

Choose Cylinder:

1 1" Mortise Cylinder-Schlage SC1 Keyway +$12.00
No Cylinder Needed

Overview


Special order item with 4 week lead time.
  • Minimum stile 2". Fits narrow, medium and wide stile aluminum doors.
  • For door opening of 36"
  • With cylinder dogging, mortise cylinder not included.
  • For doors 1-3/4" thick.
  • Exit only function, no entry from outside.
  • Bar height adjustable from 30"- 44".
  • Door height is adjustable for doors up to 66" above the select bar height.
  • Non handed.
  • Adams Rite exit devices fully meet building codes and ADA guidelines for accessibility.

Available Options: Choose Options Above

More Info

  • ANSI/BHMA grade 1-UL Listed Life Safety, ANSI/BHMA 156.3
  • Projection-2-5/8", 1-5/8" when dogged.
  • Pushbar made of extruded aluminum.
  • Patented top latching mechanism interlocks door to frame.
  • Top and bottom adjustable steel rods.
