Adams Rite 8600-MLR-US32D-36

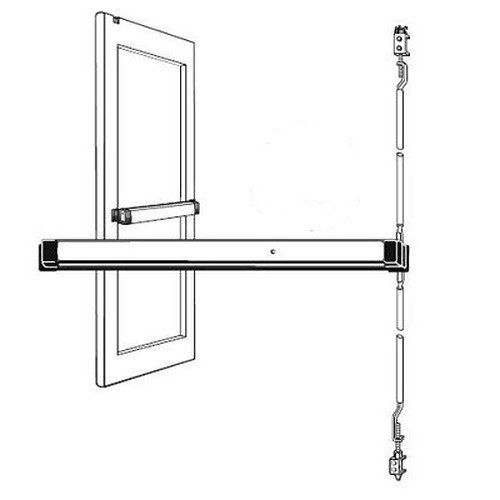

Special Order Narrow Stile Concealed Vertical Rod Exit Device with Motorized Latch Retraction

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 8600-MLR-US32D-36

The Adams Rite 8600-MLR narrow stile concealed vertical rod exit devices are for aluminum stile glass doors with 2" minimum stile. With MLR-Motorized Latch Retraction

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order item with 4 week lead time.
  • Minimum stile 2". Fits narrow, medium and wide stile aluminum doors.
  • MLR- Motorized Latch Retraction: The MLR Motorized Latch Retraction option provides a quieter operation than solenoid options.
  • Fail-secure. In the event of a power failure, the exit device defaults to latched condition.
  • Requires 2 AMP at 24VDC regulated/filtered power supply
  • 850 mA during retraction and 370 mA maintained in dogged hold position.
  • Finish-US32D satin stainless steel.
  • For doors 36" wide.
  • For doors 1-3/4" thick.
  • Exit only function, no entry from outside.
  • Bar height adjustable from 30"- 44".
  • Door height is adjustable for doors up to 66" above the select bar height.
  • Non handed.
  • Hex key dogging standard.
  • Adams Rite exit devices fully meet building codes and ADA guidelines for accessibility.
  • Order PS-SE Power Supply separately.

More Info

  • ANSI/BHMA grade 1-UL Listed Life Safety, ANSI/BHMA 156.3
  • Projection-2-5/8", 1-5/8" when dogged.
  • Pushbar made of extruded aluminum.
  • Patented top latching mechanism interlocks door to frame.
  • Top and bottom adjustable steel rods.
