Adams Rite 8600

Narrow Stile Concealed Vertical Rod Exit Device

Quick Product Details

  • Concealed Vertical Rod Exit Device
  • For Aluminum Stile Glass Doors
Price: $476.00 /each

SKU: 8600

Choose Options Below

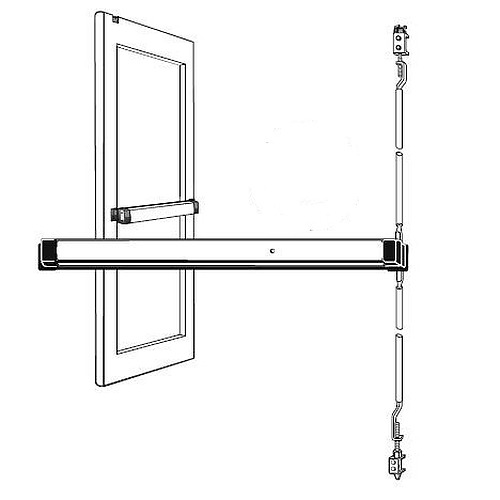

This Adams Rite 8600 series is a concealed vertical rod exit device for aluminum stile glass doors with a stile width minimum of two inches. This device operates as exit only. It does not allow entry from the outside. It is supplied standard with hex-key dogging.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $476.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

628 Clear Anodized Aluminum-8611 628 Clear Anodized Aluminum-8611
313 Dark Bronze Anodized Aluminum-8622 313 Dark Bronze Anodized Aluminum-8622

Choose Bar Size:

36" Bar Length
42" Bar Length

Help Me Decide

Select the push-bar length that will  best fit the width of your door.

  • 36” push-bar for door opening up to 36”
  • 42” push-bar for door opening up to 42”



Overview


Quality:
  • ANSI/BHMA 156.3 Grade 1
  • UL Listed Life Safety
  • Fully meets building codes and ADA guidelines for accessibility.
  • 5 year limited warranty from date of manufacture

Available Options: Choose Options Above

Product at A Glance

  • Fits narrow, medium and wide stile aluminum doors.
  • Hex key dogging standard.
  • The push-bar is made of extruded aluminum.
  • The patented top latching interlocks the door to the frame.
  • Includes top and bottom adjustable steel rods.
Style Concealed Vertical Rod Exit Device
Application Aluminum stile glass doors
Function Exit Only;
- No entry from outside
- Trim available separately
Handing Non-handed
Door Thickness 1-3/4" (standard)
Door Height Adjustable for doors up to 66" above the select bar height
Bar Height Adjustable from 30" - 44"
Stile Minimum 2"
Projection - 2-5/8"
- When dogged 1-5/8"

More Info

Concealed, vertical rod exit devices latch on the top and the bottom of a door rather than at the side. They are therefore often used in cross-corridor applications where two doors cover the opening and there is no mullion between them to receive the latch. This exit device is supplied with hex key dogging as the standard means of dogging down the device.
