Adams Rite MS1837-628

Special Order 2 Point Deadbolt for Wood Doors

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: MS1837-628

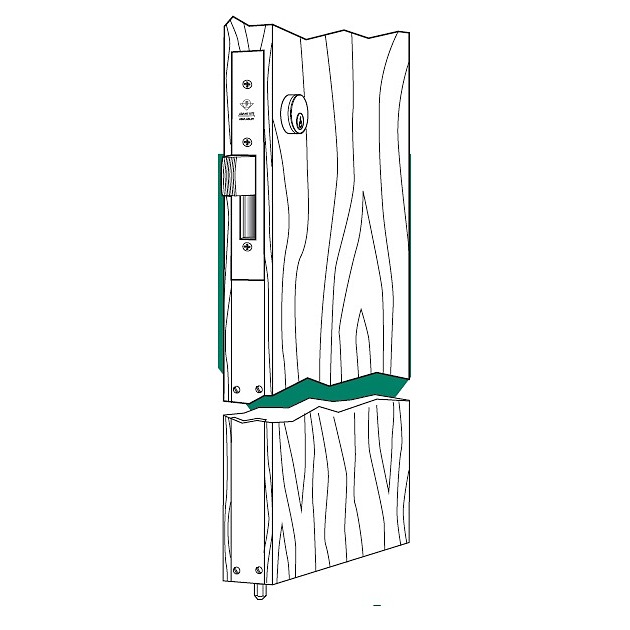

The MS 1837 provides maximum security for wood door pairs by a single turn of a key. By dropping a stainless steel hexbolt into the threshold and pivoting the massive MS bolt into the opposite leaf, the MS1837 eliminates inconvenient and sometimes forgotten flushbolts in the inactive leaf.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?


Special order item with 4 week lead time.

  • 360 degree turn of key or thumbturn throws counterbalanced bolt into opposite door and  drop bolt into threshold.
  • Key can be removed only when bolts are in a positively locked or unlocked position.
  • Requires 2 mortise cylinders with MS cam, not included.
  • Cylinder height 36" standard.
  • Cylinder Backset is 1 1/2".

More Info

  • Armored Faceplate is flat, two-piece plate extends to bottom of door.
  • Standard finish is 628, clear anodized aluminum.
  • for MS bolt, a strike plate with dust box is furnished.
  • Threshold bolt strike can be a 1/2" diameter hole in metal threshold.
