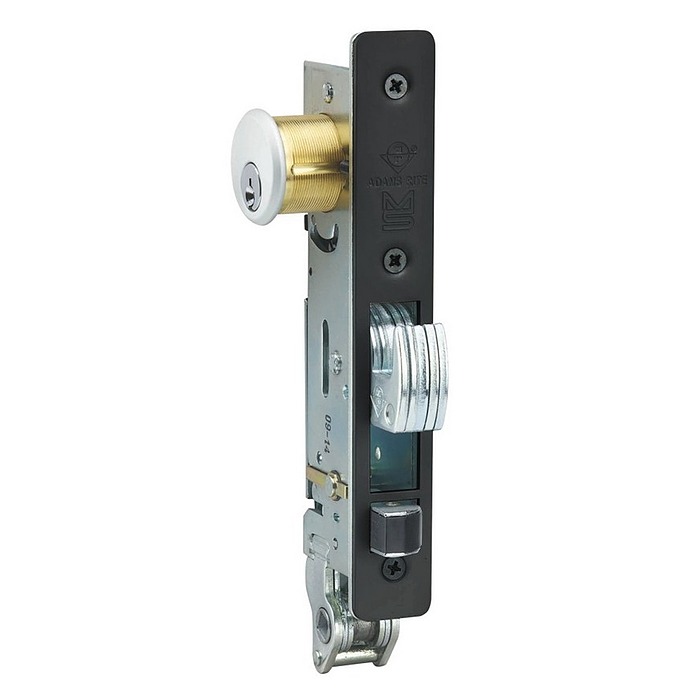

Adams Rite MS1850-050-335

Special Order Maxium Security Hook Bolt for Aluminum Doors and Frame

Quick Product Details

  • Maximum Security Hook Bolt
  • For Aluminum Doors and Frames
Price: $63.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: MS1850-050-335

Choose Options Below

This Adams Rite MS1850-050 hook bolt is for aluminum door and frame applications. It is constructed of laminated 8 ply stainless steel for excellent durability. It's laminated hook bolt shape is designed to resist the parting motion of the sliding door and jamb. Finished in 335 - Black Painted Finish

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $63.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

335- Black Painted Finish 335- Black Painted Finish

Choose Backset:


Help Me Decide

The backset is the measured distance from the edge of a door to the center of the cylinder.



Non-Stock Special Order with 3-4 Week Lead Time

  • The MS1850S-050 Series MS® Deadlock utilizes a laminated stainless steel hookbolt, activated by a pivot mechanism to provide maximum security for a sliding narrow stile door.
  • 5 year limited warranty from date of manufacture

Available Options: Choose Options Above

  • Finish:

  • Backset: info icon

    • 31/32
    • 1-1/8
    • 1-1/2

Product at A Glance

  • Deadbolt requires a 1” mortise cylinder with a MS cam (not included).
  • Center ply of bolt has Alumina-Ceramic core to defeat any hacksaw attack, including rod-type
  • A 360 degree turn of a key or thumbturn throws or retracts the counterbalanced bolt
  • The key can be removed only when the bolt is in a positively locked or unlocked position
  • A strike is not included
  • Finished in 335- Black Painted Finish
Style Maximum security hook bolt
Application Aluminum doors and frames
Handing Non-handed
Latchbolt 5/8" x 1-3/8" x 13/16" throw with 8 ply laminated stainless steel
Case - 1" x 6" - depth varies by backset
- steel with corrosion resistant plating
Faceplates 1" x 6-7/8" flat faceplate

More Info

To prevent sliding doors from moving out of their latching position with the jamb, a hook bolt should be used. A hook bolt will ensure that your sliding door remains firmly latched at all times. The Adams Rite MS1850-050 hook bolt is of high quality construction ensuring utmost security and durability.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product


Scroll for More Product Information
