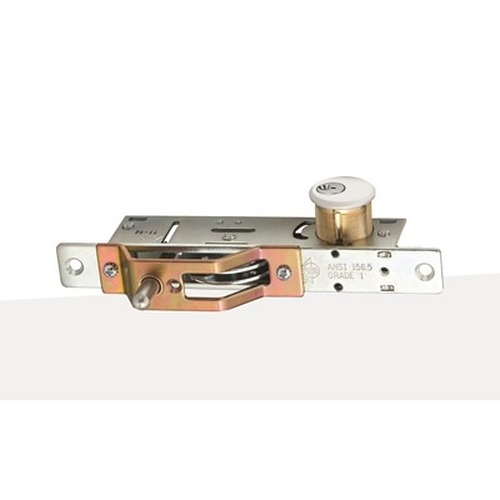

Adams Rite MS1861-01-603

Bottom Rail Deadbolt for Narrow Stile or Full Glass Doors

Price: $106.00 /each

SKU: MS1861-01-603

The Adams Rite MS1861-01 Bottom Rail Deadbolt provides maximum security with MS deadbolt locking mechanism. It utilizes hardened steel bolts for the limited space of ultra-narrow stile doors.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 36 hours 54 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?


  • One-point deadlock, vertical bolt operation only.
  • For full glass frameless doors.
  • 360° turn of key or thumbturn throws or retracts bolt. Key can be removed only when bolts are in a positively locked
    or unlocked position.
  • Minimum backset is approximately 2-1/4" for the MS1861- .01 with vertical bolt only.
  • Case, steel with corrosion-resistant plate, measures 1" x 6" x 1-13/16".
  • 3/8" diameter stainless steel vertical threshold bolt has 13/16" throw.
  • Strike, In metal installation, 7/16" drilled holes in threshold are required.
  • Requires 2 mortise cylinders not included.
  •  603-Zinc plated steel finish.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
