Adams Rite PS-Exit

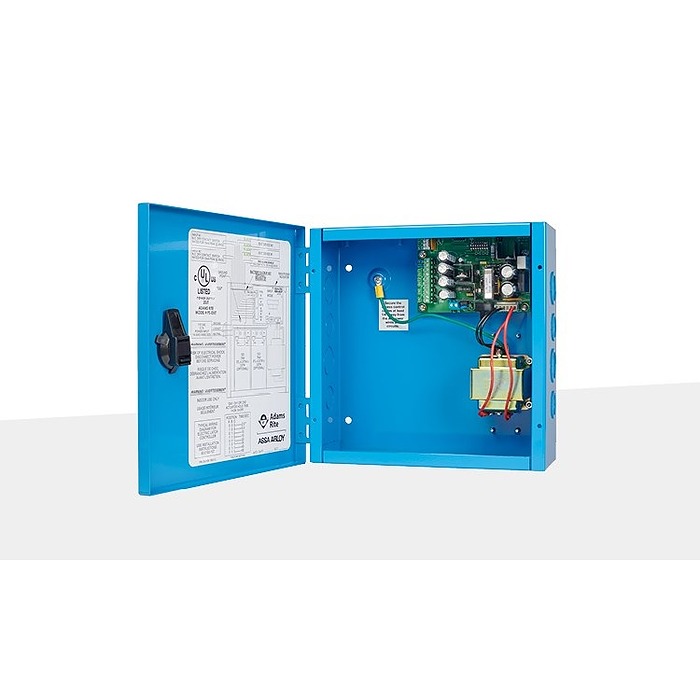

The PS-EXIT Power Supply

Quick Product Details

  • The PS-EXIT Power Supply for 8000/3000 Exit Devises with MR /LR
  • Input Power: 115 VAC
  • Output Voltage: 24 - 26 VDC
Price: $394.00 /each

SKU: PS-Exit

PS-EXIT power supply is designed to replace PS-SE and PS-LR power supplies.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

  • Adams Rite recommends that for optimal performance all exit devices with the MLR or LR options are installed and powered using PS-EXIT power supplies. Failure to do so may cause permanent damage to the exit device.
  • This power supply is designed to provide power and control for up to two MLR or LR exit devices. Each exit device is controlled by a timer that is initiated by a switch closure. The timer is user-configured and holds the exit device(s) in the unlatched position for 2 – 60 seconds. At the end of the selected time, the exit device(s) will re-latch. If the switch controlling the exit device is closed longer than the selected time, the exit device remains unlatched until the controlling switch is released.

Product at A Glance

Operating Modes
  • Single Input (Sequential Operation): either input retracts the corresponding exit device followed by retraction of second device. Control double-door exit with one input.
  • Dual Input (Independent Operation): Each exit device is controlled by its own input switch. Control two separate exits with two inputs.
Housing Hinged, steel cabinet measures 10" x10-3/8" x 4-1/8".
Operating Modes The PS-EXIT is designed to power up to two 8000/3000 MLR or LR exit devices.
Certifications UL 294, CAN/CSA-C22.2 No. 223.
