Alarm Controls 1200LB

Interior Single Door Magnetic Lock With LED and Sensors

Quick Product Details

  • 1200 lbs holding force
  • Clear anodized (US28) finish standard
  • Operates on 12 or 24 VDC, selectable
  • Includes LED, Bond Sensor, and Door Position Sensor
Price: $260.00 /each

SKU: 1200LB

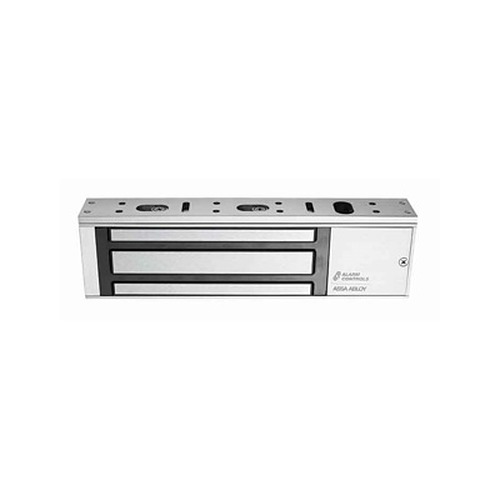

Bracket mounted, single magnetic lock with 1200 lbs holding force that can be easily installed without special tools and used with any access control system. Ideal for high-use areas for traffic control in interior applications. This Magnetic lock comes with an indicating LED, bond sensor and door status sensor included in the package.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 7 hours 28 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

  • Ideal for high-use areas for traffic control in interior applications.
  • 1200 lbs holding force single magnetic Lock.
  • Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2"
  • Armature size: 7-1/4" L x 2-3/8" H x 5/8" W
  • Low current draw: 505 mA at 12 VDC, 260 mA at 24VDC.
  • Operating Temperature:+14 to +131F [-10 to +55C.

Product at A Glance

  • Non-aluminum parts are plated to resist corrosion.
  • Built-in arc suppression.
  • Instant release, no hysteresis.
  • Can be used with any access control system.
  • E-Z mount system, no special tools required.
  • Self drilling TEC screws.
  • Includes LED Status Indicator
  • Includes Bond Sensor
  • Includes Door Status Sensor

More Info

  • UL 10C fire rated
  • UL 294
  • CAN4-S104 (ULC-S104) fire door conformant
  • ULC-S527 listed
  • UL 864 listed
