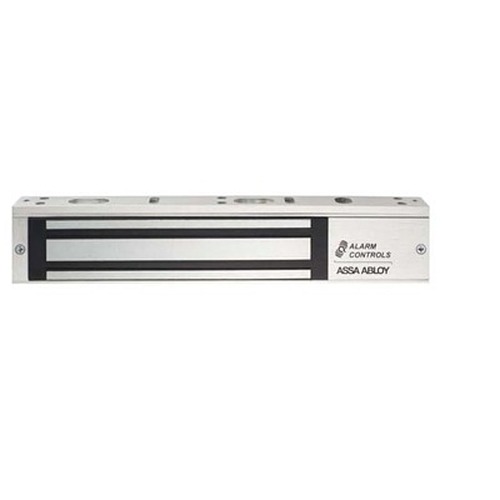

Alarm Controls 600LB

Magnetic lock with Status Sensors

Quick Product Details

  • 12 or 24 VDC, field selectable
  • Current draw: 505 mA at 12 VDC, 260 mA at 24 VDC
  • 600LB bond sensor has SPDT 3A relay contacts
Price: $212.00 /each

SKU: 600LB

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 18 hours 45 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

Bracket mounted, single magnetic lock with 600 lbs holding force, that can be easily installed without special tools and used with any access control system.
Ideal for high-use areas for traffic control in interior applications.

Product at A Glance

  • Magnetic lock with red LED status indicator, bond sensor, and door status sensor.
  • Built-in arc suppression.
  • Instant release,no hysteresis.
  • Holding Force,600 lbs.
  • UL 294 listed.
  •  CAN/ULC-S104 fire door conformant.
  • UL 864 listed.
  • CAN/ULC-S527 listed.
  • Clear anodized (US28) finish standard.

More Info

  • Operating Temperature • +14 to +131F [-10 to +55C.
  • Dimensions • Magnet size: 9-7/8" L x 1-11/16" H x 1" W • Armature size: 7-1/4" L x 1-1/2" H x 1/2" W.
  • Self-drilling TEC screws.
  • Non-aluminum parts are plated to resist corrosion.
  • E-Z mount header bracket and template provided for easy installation, no special tools required.
  • Can be used with any access control system.
