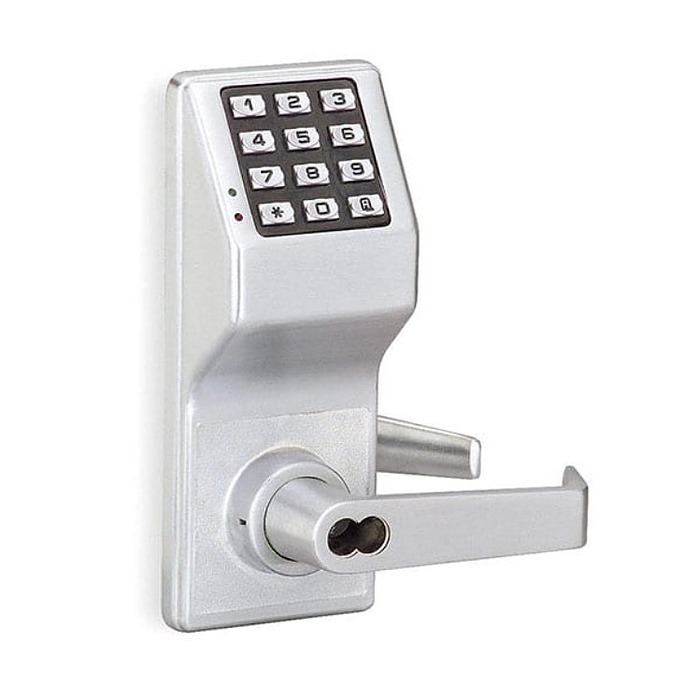

Alarm Lock DL2700-IC7

Special Order Trilogy T2 Electronic Digital Lock with IC 7pin core Prep

Quick Product Details

  • Electronic Digital Lock
  • IC Core Prepped Best Small Format IC Core
Price: $559.00 /each

SKU: DL2700-IC7

Choose Options Below

This Alarm Lock DL2700IC Trilogy T2 electronic digital lock is prepped for IC core. This special order accepts either a Corbin, Yale or Medeco Large Format IC with seven pin cylinders. The core is not included in this package.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Stock Item
  • FREE Shipping
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $559.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Choose IC Core:

Corbin IC Core Prep (Core Not Included) Corbin IC Core Prep (Core Not Included)
Yale IC Core Prep (Core Not Included) Yale IC Core Prep (Core Not Included)
Medeco IC Core Prep (Core Not Included) Medeco IC Core Prep (Core Not Included)

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


  • BHMA Certified Grade 1 heavy duty cylindrical lockset.
  • Latch bolt - UL Listed, fire rated, 3 hours
  • UL listed 10C Positive Pressure Specification
  • ADA compliant levers

Available Options: Choose Options Above

  • Finish:

  • IC Core: info icon

    • Corbin IC Core Prep (Core Not Included)
    • Yale IC Core Prep (Core Not Included)
    • Medeco IC Core Prep (Core Not Included)

Product at A Glance

  • This model accepts Corbin, Yale, or Medeco Large Format IC 7 pin cylinders (Core not included)
  • Holds up to 100, 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
  • Powered by 5 AA alkaline batteries (included)
  • Vandal proof all-metal keypad
  • Individual, group or total user lockout codes
  • Easy passage mode by manager and or master
  • The outside lever is free turning in locked position
  • Clutch mechanism permits turning lever without retracting the latch and it reduces stress on the lock body and spindle
  • The inside lever is always free for instant egress
Style Electronic digital lock prepped for IC core
Grade Heavy Duty
Application For interior use (For exterior applications use the Weatherproof model DL2700WP)
Handing Non-handed
Backset 2-3/4"
Door Thickness 1-5/8" to 1-7/8"
Latchbolt 1/2" throw

More Info

This keyless door lock is widely popular for its dependability and convenience. It can be programed to hold up to one hundred entry codes including one master, ten manager, ninety basic users and three one time service codes. This lock features a simple to use passage mode for master and manager use.
