Alarm Lock DL2700IC-R-26D

Special Order Trilogy T2 Electronic Digital Lock with Sargent IC core Prep

Quick Product Details

  • Electronic Digital Lock
  • IC Core Prepped for Sargent Large Format IC Core
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: DL2700IC-R-26D

Choose Options Below

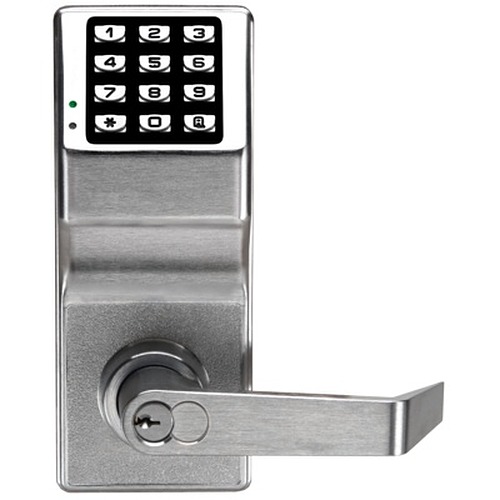

This Alarm Lock DL2700IC Trilogy T2 electronic digital lock is prepped for Sargent large format IC core. The core is not included in this package.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

US26D Satin Chrome US26D Satin Chrome


Special order non stock item with 4 week lead time.
  • BHMA Certified Grade 1 heavy duty cylindrical lockset.
  • Latch bolt - UL Listed, fire rated, 3 hours
  • UL listed 10C Positive Pressure Specification
  • ADA compliant levers

Available Options: Choose Options Above

Product at A Glance

  • The standard model accepts Sargent large format interchangeable 6 & 7 pin cores. Core not included.
  • Holds up to 100, 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
  • Powered by 5 AA alkaline batteries (included)
  • Vandal proof all-metal keypad
  • Individual, group or total user lockout codes
  • Easy passage mode by manager and or master
  • The outside lever is free turning in locked position
  • Clutch mechanism permits turning lever without retracting the latch and it reduces stress on the lock body and spindle
  • The inside lever is always free for instant egress
Style Electronic digital lock prepped for sargent IC cores
Grade Heavy Duty
Application For interior use (For exterior applications use the Weatherproof model DL2700WP)
Handing Non-handed
Backset 2-3/4"
Door Thickness 1-5/8" to 1-7/8"
Latchbolt 1/2" throw

More Info

This keyless door lock is widely popular for its dependability and convenience. It can be programed to hold up to one hundred entry codes including one master, ten manager, ninety basic users and three one time service codes. This lock features a simple to use passage mode for master and manager use.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
