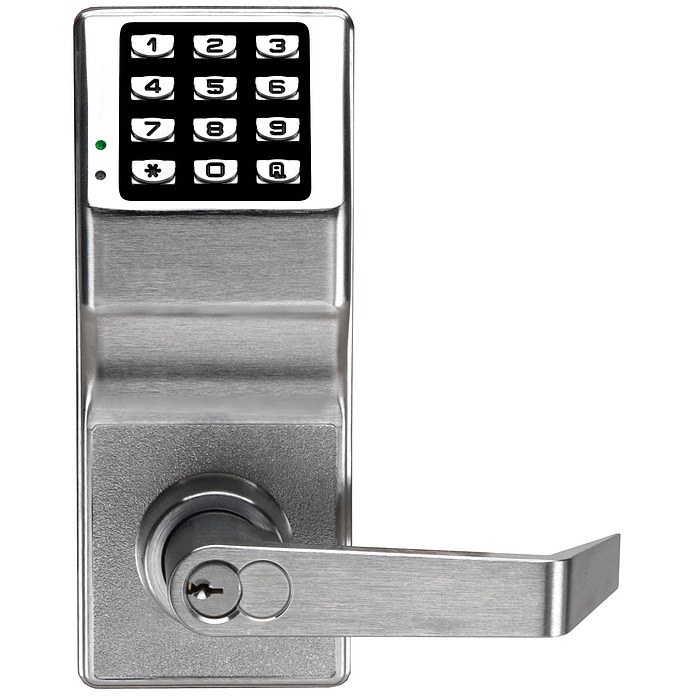

Alarm Lock DL2700IC

Trilogy T2 Electronic Digital Lock with IC core Prep

Quick Product Details

  • Electronic Digital Lock
  • IC Core Prepped Best Small Format IC Core
Price: $394.00 /each

SKU: DL2700IC

Choose Options Below

This Alarm Lock DL2700IC Trilogy T2 electronic digital lock is prepped for IC core. The standard model accepts Best type small format interchangeable core for six and seven pin cylinders. The core is not included in this package.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $394.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core with 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$35.00
AWHOUSE 6 Pin Small Format (Best type) IC Core + $34.00 AWHOUSE 6 Pin Small Format (Best type) IC Core +$34.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Overview


Quality:
  • BHMA Certified Grade 1 heavy duty cylindrical lockset.
  • Latch bolt - UL Listed, fire rated, 3 hours
  • UL listed 10C Positive Pressure Specification
  • ADA compliant levers

Available Options: Choose Options Above

  • Finish:

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • AWHOUSE 6 Pin Small Format (Best type) IC Core
    • No IC Core Needed

Product at A Glance

  • The standard model accepts Best Type small format interchangeable core 6 & 7 pin cylinders (Core not included)
  • Holds up to 100, 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
  • Powered by 5 AA alkaline batteries (included)
  • Vandal proof all-metal keypad
  • Individual, group or total user lockout codes
  • Easy passage mode by manager and or master
  • The outside lever is free turning in locked position
  • Clutch mechanism permits turning lever without retracting the latch and it reduces stress on the lock body and spindle
  • The inside lever is always free for instant egress
Style Electronic digital lock prepped for IC core
Grade Heavy Duty
Application For interior use (For exterior applications use the Weatherproof model DL2700WP)
Handing Non-handed
Backset 2-3/4"
Door Thickness 1-5/8" to 1-7/8"
Latchbolt 1/2" throw

More Info


This keyless door lock is widely popular for its dependability and convenience. It can be programed to hold up to one hundred entry codes including one master, ten manager, ninety basic users and three one time service codes. This lock features a simple to use passage mode for master and manager use.
