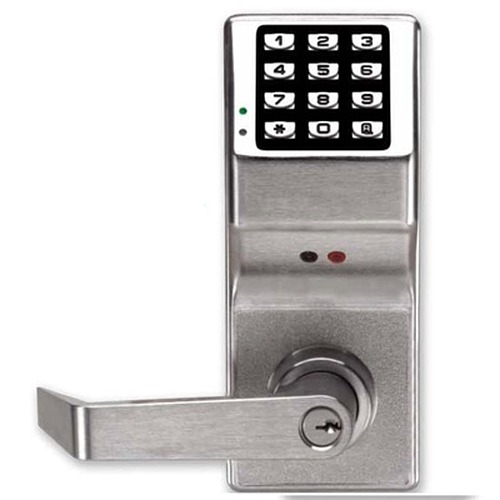

Alarm Lock DL3000

Trilogy T3 Electronic Digital Lock with Audit Trail

Quick Product Details

  • Electronic Digital Lock
  • With Audit Trail
  • Program at Keypad or with PC-and/or Data-Transfer Module. PC Programing and Audit Trail Requires Optional Software and Accessories
Price: $733.00 /each

SKU: DL3000

Choose Options Below

This Alarm Lock DL3000 electronic digital Trilogy T3 lock includes a very useful audit trail feature. This function will record up to 1,600 events in a log. Each time the lock is activated the day, date, time and user of the lock is recorded for later reference.

  • Stock Item
  • Order in the next 36 hours 22 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $733.00

Choose Finish:

US26D Satin Chrome US26D Satin Chrome


  • BHMA Certified Grade 1 heavy duty cylindrical lockset.
  • Latch bolt - UL Listed, fire rated for 3 hours
  • UL listed 10C Positive Pressure Specification
  • ADA compliant levers

Special Orders Available:
  • More unlisted finishes available
  • Available as prepped for IC core
  • Available with weatherproof feature
Contact us directly to place your special orders.

Available Options: Choose Options Above

Product at A Glance

  • 300 user with multilevel security - master, manager, supervisor and basic users
  • 1,600 event audit trail log, stamped by day, date, time and user
  • Powered by 5 AA alkaline batteries (included)
  • Keypad or Window PC programmable
  • Real time clock enables up to 150 scheduled events and holiday schedules
  • Keypad: All metal, 12 button
Style Electronic digital lock with Audit Trail
Grade Heavy Duty
Handing Non-handed
Backset 2-3/4"
Door Thickness 1-5/8" to 1-7/8"
Latchbolt 1/2" throw
Cylinder - Key override
- 6 pin solid brass cylinder with SC1 keyway (included)

More Info

This model Trilogy digital lock is an advanced keypad controlled lock which can be programmed through the keypad or a Windows PC. This DL3000 features a 1,600 event audit trail log which will keep track of 1,600 recent events. The real time clock allows for up to 150  scheduled events and holiday schedules to be programmed. All programming may be performed manually from the keypad, or from a PC using Alarm Lock's DL-Windows Software.
